Walter Capto TM Adaptor – vibration damped A3001-C A3001-C8-QL60-541

Walter Capto TM Adaptor – vibration damped A3001-C A3001-C8-QL60-541

€

5,353.00

EX VAT

€

6,584.19

INC VAT

Walter

Walter Capto TM Adaptor – vibration damped A3001-C A3001-C8-QL60-541

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

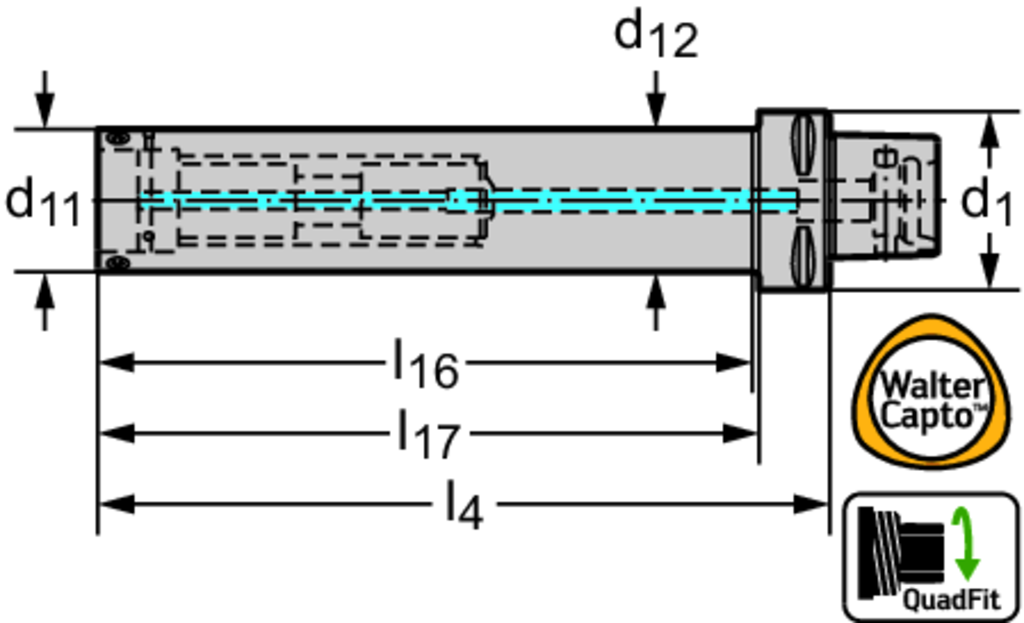

Tool designation (Designation) A3001-C8-QL60-541

Connection size code (d 1) C8

Connection diameter (d 11) QL60

Body diameter (d 12) 60 mm

Maximum projection length (l 4) 541 mm

Useable length (l 16) 503 mm

Clamping diameter depth (l 17) 508 mm

Maximum speed (n max) 2000

weight of item 14 kg

Insert Shape A3

DESCRIPTION & FEATURES

Walter Capto TM Adaptor – vibration damped A3001-C • metric • For A2201 intermediate adaptor with QuadFit interface • With preset vibration damping • d1=C8 • d11=QL60

Article number (J21):

A3001-C8-QL60-541

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter (A1):

60 mm

Body length 1 (B1):

508 mm

Length 2 (B2):

503 mm

Protruding length (B3):

541 mm

Overall length (B4):

589 mm

Functional length (B71):

541 mm

Connection code type machine side (C11):

CCS

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0800

Connection diameter machine side (C3):

80 mm

Shank length (C4):

48 mm

Connection code type workpiece side (C51):

SAW

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0600

Rotational speed maximum (D6):

2000 1/min

Weight of item (D7):

14 kg

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ISO26623-1

Data chip provision (J7):

Insert Type:

d11=QL60
