Turning tools – Lever clamping C... C6-PSSNL-45056-12

Turning tools – Lever clamping C... C6-PSSNL-45056-12

€

276.00

EX VAT

€

339.48

INC VAT

Walter

Turning tools – Lever clamping C... C6-PSSNL-45056-12

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

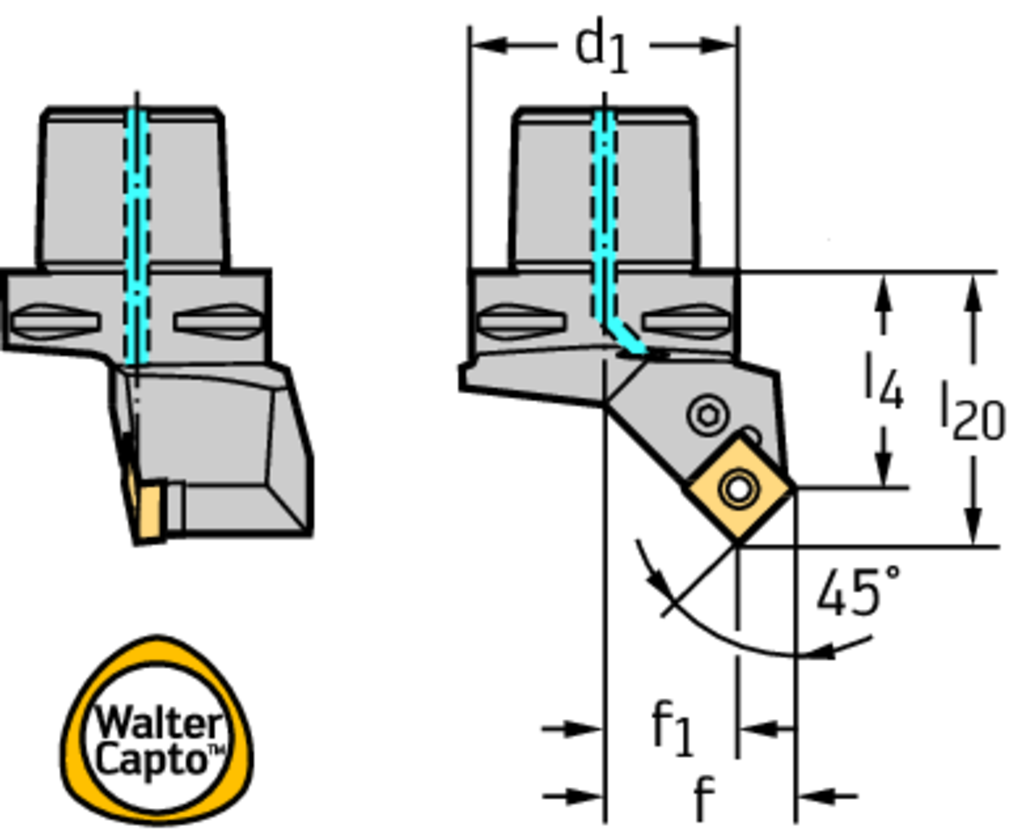

Tool designation (Designation) C6-PSSNL-45056-12

Connection size code (d 1) C6

Functional width (f) 45 mm

Functional width (f 1) 36,7 mm

Functional length (l 4) 56 mm

Functional length (l 20) 64,3 mm

Minimum hole diameter (D min) 81 mm

Minimum hole diameter (D min2) 181 mm

Orthogonal rake angle (γ) -8 Deg

Inclination angle (λ s) 0 Deg

Insert Shape C.

DESCRIPTION & FEATURES

Turning tools – Lever clamping C...-PSSN • Walter Turn • metric • Walter Capto^TM ISO 26623 • κ=45° • Left • C6 • square insert • SN .. 1204 ..

Article number (J21):

C6-PSSNL-45056-12

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

12,7 mm

Functional width (A2):

45 mm

Functional length (A3):

64,32 mm

Functional height (A4):

0 mm

A dimension on wf (A51):

8,32 mm

A dimension on lf (A52):

8,32 mm

Protruding length (B3):

102,32 mm

Overall length (B5):

102,32 mm

Connection code type machine side (C11):

CCS

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0630

Weight of item (D7):

1,08 kg

Tool cutting edge angle (E1):

45 °

Tool cutting edge angle type code (E2):

Insert included angle (E3):

90 °

Rake angle orthogonal (E4):

-8 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Left

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ISO26623-1

Master insert identification (J42):

SNMG 12 04 08

Data chip provision (J7):

Insert Type:

SN .. 1204 ..
