Tap quick-change chuck A320M A320M.0.40.110.19Tap quick-change chuck A320M A320M.0.40.110.19
Tap quick-change chuck A320M A320M.0.40.110.19 Tap quick-change chuck A320M A320M.0.40.110.19

Tap quick-change chuck A320M A320M.0.40.110.19

€
892.00
EX VAT
€
1,097.16
INC VAT
Walter
Tap quick-change chuck A320M A320M.0.40.110.19
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

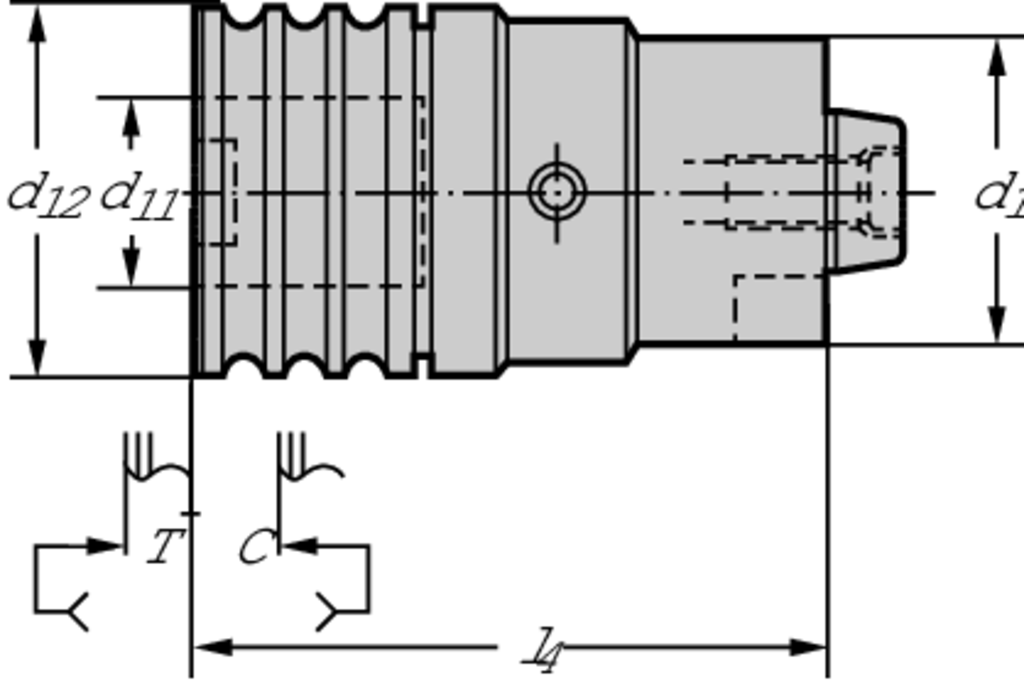

PRODUCT ATTRIBUTES
Tool designation (Designation) A320M.0.40.110.19
Connection size code (d 1) NCT 40
Connection diameter (d 11) 19 mm
Body diameter (d 12) 36 mm
Maximum projection length (l 4) 110 mm
Length adjustment C (Length adjustment C) 7,5
Length adjustment T (Length adjustment T) 7,5
Collet size (Collet size) 1
For taps M4-M12
Insert Shape A3
DESCRIPTION & FEATURES
Tap quick-change chuck A320M • metric • d1=40mm • d11=19mm • for thread diameter size=M4-M12
Article number (J21):
A320M.0.40.110.19
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter (A1):
36 mm
Flange diameter (A4):
40 mm
Diameter lock nut (A5):
36 mm
Body length 1 (B1):
41 mm
Protruding length (B3):
110 mm
Overall length (B4):
122 mm
Functional length (B71):
110 mm
Connection code type machine side (C11):
NCT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
8
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0400
Connection diameter machine side (C3):
40 mm
Shank length (C4):
12 mm
Connection code type workpiece side (C51):
SWE
Connection code form at workpiece side (C52):
00
Connection code unit base workpiece side (C54):
8
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0190
Rotational speed maximum (D6):
30000 1/min
Weight of item (D7):
0,903 kg
Kappa (E2):
0 °
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Data chip provision (J7):
0
