Tangential rhombic LNMU150812-F57T WKP25S

Tangential rhombic LNMU150812-F57T WKP25S

€

26.30

EX VAT

€

32.35

INC VAT

Walter

Tangential rhombic LNMU150812-F57T WKP25S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

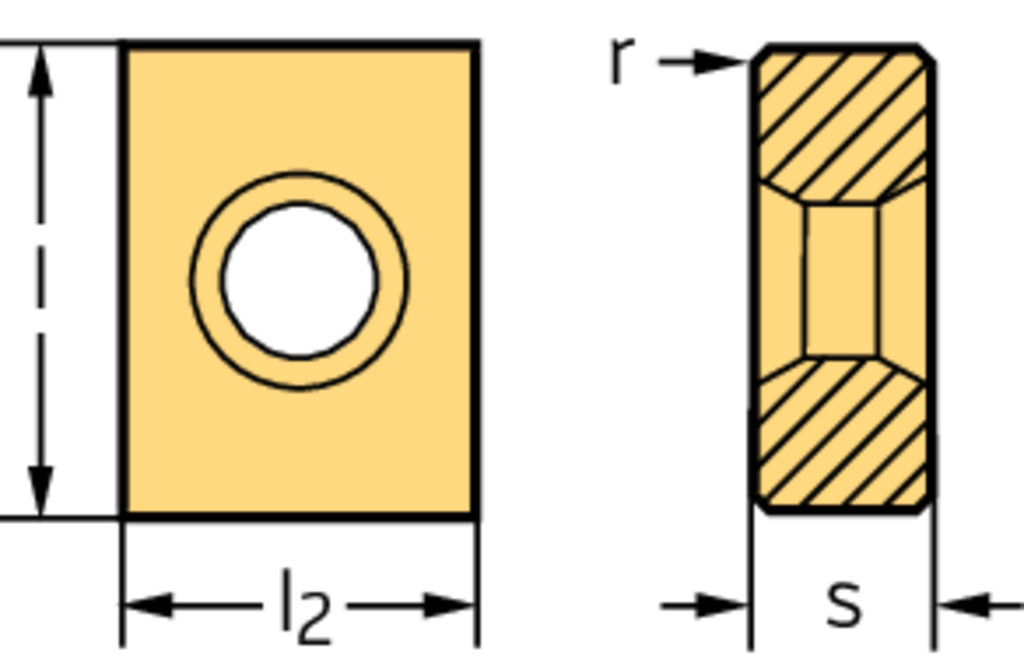

Tool designation (Designation) LNMU150812-F57T WKP25S

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 4

Indexable insert width (l 2) 14 mm

Cutting edge length (l) 15 mm

Insert thickness (s) 8 mm

Corner radius (r) 1,2 mm

Insert Shape LN

DESCRIPTION & FEATURES

Tangential rhombic LNMU ...-F57T • clearance angle major=0° • WKP25S • Tigertec Silver • Corner radius=1,2mm

Article number (J21):

LNMU150812-F57T WKP25S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

15 mm

Insert width (B2):

14 mm

Insert thickness (C1):

8 mm

Corner radius (D1):

1,2 mm

Weight of item (D75):

0,021 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

F57T

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert length (G3):

15 mm

Insert thickness total (G4):

8 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

5,5 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKP25S

Coating (H5):

TiCN+Al2O3+(TiCN)

Tipped cutting edge code (H6):

Standard designation (J11):

LNMU150812
