Synchronous thread cutting adaptor AB035-J AB035-J40-ER20-110

Synchronous thread cutting adaptor AB035-J AB035-J40-ER20-110

€

1,028.00

EX VAT

€

1,264.44

INC VAT

Walter

Synchronous thread cutting adaptor AB035-J AB035-J40-ER20-110

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

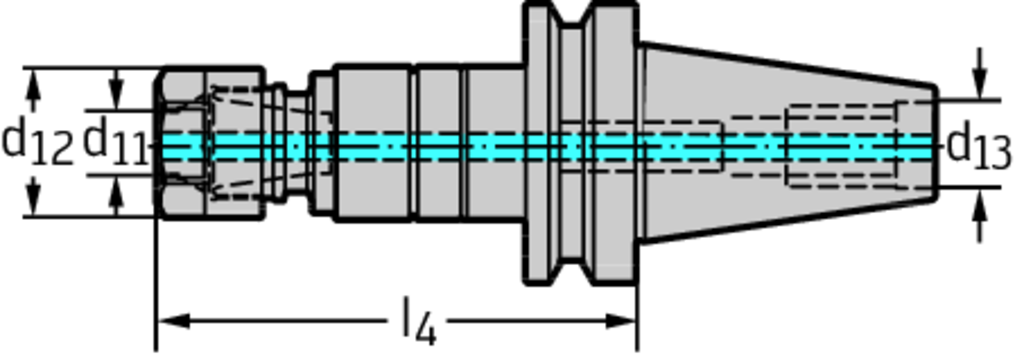

PRODUCT ATTRIBUTES

Tool designation (Designation) AB035-J40-ER20-110

Connection size code (d 1) BT40

Connection diameter (d 11) M4-M12 mm

Body diameter (d 12) 33,7 mm

Pull stud, thread size (d 13) M16 mm

Maximum projection length (l 4) 110,2 mm

Collets ER20

weight of item 1,4 kg

Insert Shape AB

DESCRIPTION & FEATURES

Synchronous thread cutting adaptor AB035-J • metric • d1= • d11=20,8mm • for thread diameter size=M4-M12

Article number (J21):

AB035-J40-ER20-110

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter 2 (A2):

35 mm

Flange diameter (A4):

63 mm

Diameter lock nut (A5):

33,7 mm

Length 2 (B2):

83,2 mm

Protruding length (B3):

110,2 mm

Overall length (B4):

175,6 mm

Adjustment nut height (B6):

24 mm

Functional length (B71):

97,2 mm

Connection code type machine side (C11):

SKG

Connection code form at machine side (C12):

Connection thread nominal size machine side (C13):

M16

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

20,8 mm

Shank length (C4):

65,4 mm

Connection code type workpiece side (C51):

SZD

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0200

Rotational speed maximum (D6):

8000 1/min

Weight of item (D7):

1,429 kg

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

MAS403-BT

Standard letter to the standard number (J11):

Data chip provision (J7):
