Solid carbide twist drills DC150-05-08.334A0-WJ30TA

Solid carbide twist drills DC150-05-08.334A0-WJ30TA

€

54.46

EX VAT

€

66.99

INC VAT

Walter Titex

Solid carbide twist drills DC150-05-08.334A0-WJ30TA

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

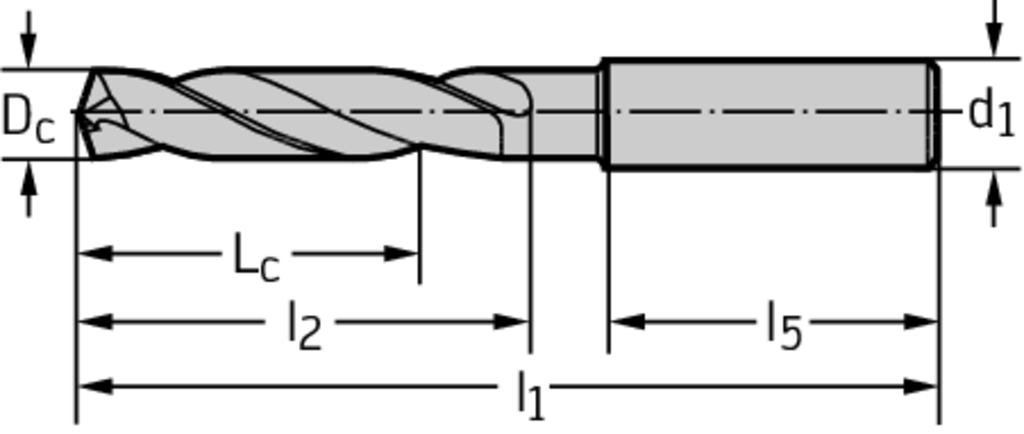

Tool designation (Designation) DC150-05-08.334A0-WJ30TA

Cutting edge diameter (D c) 8.334 mm

Cutting edge diameter (D c) 21/64" Inch_No_Let

Cutting edge length (L c) 49 mm

Overall length (l 1) 103 mm

Projection length (l 2) 61 mm

Shank length (l 5) 40 mm

Shank diameter (d 1) 10 mm

Insert Shape DC

DESCRIPTION & FEATURES

Solid carbide twist drills DC150 • Perform • DIN 6537 L • 5xD • DIN 6535 HA shank • point angle 140° • Dc=8,334mm

Article number (J21):

DC150-05-08.334A0-WJ30TA

Standard number of properties layout (NSM):

DIN4000-81

Company code (J3):

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

8,334 mm

Protruding length (B3):

62,997 mm

Usable length (B4):

49 mm

Overall length (B5):

103 mm

Length chip flute (B6):

61 mm

Point length (B7):

1,517 mm

Functional length (B71):

101,483 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0100

Connection diameter machine side (C3):

10 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

40 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,07 kg

Point angle 1st step (E1):

140 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30TA

Body material code (H4):

Coating (H5):

TiNAl

Standard (J1):

DIN 6537 L

Standard letter to the standard number (J11):

Data chip provision (J7):

Coolant Type:

Without Through Coolant
