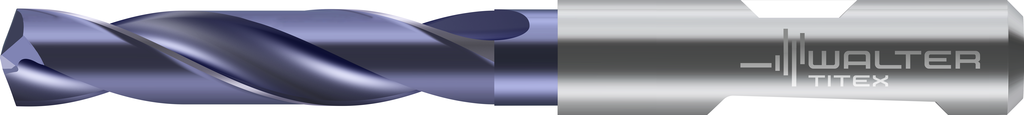

Solid carbide twist drills DC150-03-08.800D0-WJ30RE

Solid carbide twist drills DC150-03-08.800D0-WJ30RE

€

44.87

EX VAT

€

55.19

INC VAT

Walter Titex

Solid carbide twist drills DC150-03-08.800D0-WJ30RE

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

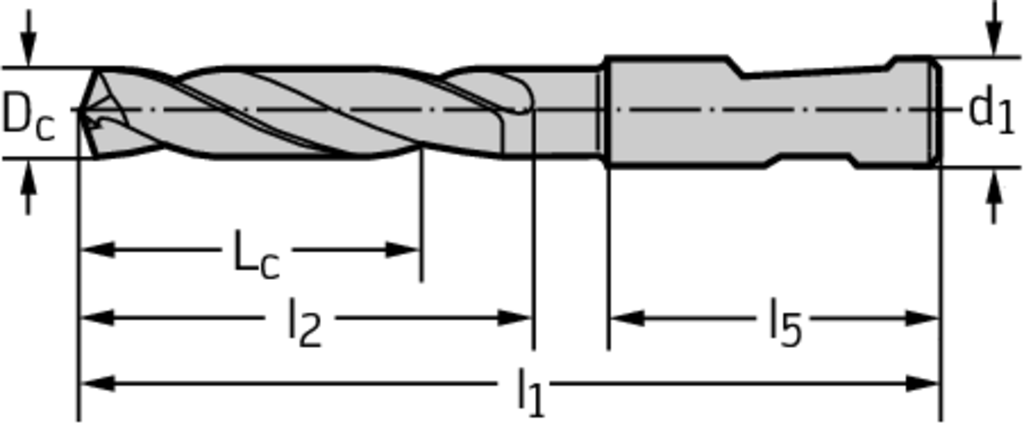

Tool designation (Designation) DC150-03-08.800D0-WJ30RE

Cutting edge diameter (D c) 8.8 mm

Cutting edge length (L c) 35 mm

Overall length (l 1) 89 mm

Projection length (l 2) 47 mm

shank length (l 5) 40 mm

Shank diameter (d 1) 10 mm

Insert Shape DC

DESCRIPTION & FEATURES

Solid carbide twist drills DC150 • Perform • DIN 6537 K • 3xD • DIN 6535 HE,
turned 180°
DIN 6535 HB • point angle 140° • Dc=8,8mm

Article number (J21):

DC150-03-08.800D0-WJ30RE

Standard number of properties layout (NSM):

DIN4000-81

Company code (J3):

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

8,8 mm

Protruding length (B3):

49,001 mm

Usable length (B4):

35 mm

Overall length (B5):

89 mm

Length chip flute (B6):

47 mm

Point length (B7):

1,601 mm

Functional length (B71):

47,4 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0100

Connection diameter machine side (C3):

10 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

40 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,067 kg

Point angle 1st step (E1):

140 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30RE

Body material code (H4):

Coating (H5):

TiNAl

Standard (J1):

DIN 6537 K

Data chip provision (J7):

Coolant Type:

Without Through Coolant
