Solid carbide top/bottom deburrer MC504-06.0A4LB-WJ30TF

Solid carbide top/bottom deburrer MC504-06.0A4LB-WJ30TF

€

76.50

EX VAT

€

94.10

INC VAT

Walter Prototyp

Solid carbide top/bottom deburrer MC504-06.0A4LB-WJ30TF

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

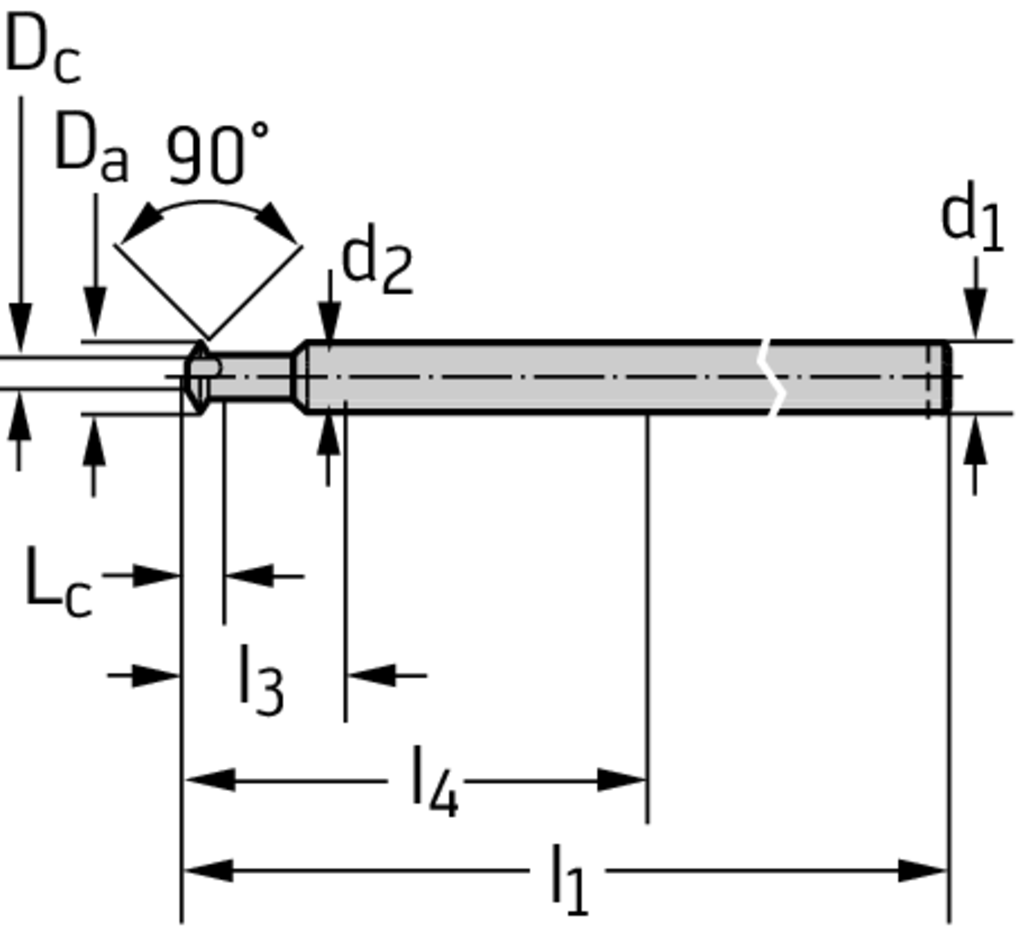

Tool designation (Designation) MC504-06.0A4LB-WJ30TF

Cutting edge diameter (D a) 6 mm

Cutting edge diameter (D c) 0.4 mm

Cutting edge length (L c) 4,25 mm

Useable length (l 3) 19 mm

Body diameter (d 2) 3,9 mm

Overall length (l 1) 100 mm

Functional length (l 4) 64 mm

Connection diameter (d 1) 6 mm

Number of teeth (Z) 4

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide top/bottom deburrer MC504 • Advance • metric • DIN 6535 HA shank • Dc=0,4mm • Da=4mm • Z=4

Article number (J21):

MC504-06.0A4LB-WJ30TF

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

4 mm

Cutting diameter maximum (A2):

6 mm

Neck diameter (A5):

3,9 mm

Depth of cut maximum (B2):

3,2 mm

B21 {APMX2}:

3,2

Protruding length (B3):

64 mm

Usable length (B4):

4,25 mm

Overall length (B5):

100 mm

Functional length (B71):

96 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,043 kg

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30TF

Body material code (H4):

Coating (H5):

TiAlN

Standard (J1):

PWZ-NORM L

Standard letter to the standard number (J11):

Data chip provision (J7):
