12mm Solid carbide shoulder/slot mills MC251-12.0-A4B165-WK40RC12mm Solid carbide shoulder/slot mills MC251-12.0-A4B165-WK40RC
12mm Solid carbide shoulder/slot mills MC251-12.0-A4B165-WK40RC 12mm Solid carbide shoulder/slot mills MC251-12.0-A4B165-WK40RC

12mm Solid carbide shoulder/slot mills MC251-12.0-A4B165-WK40RC

€
117.00
EX VAT
€
143.91
INC VAT
Walter Prototyp
Solid carbide shoulder/slot mills MC251 • Advance • DIN 6535 HA shank • metric • flute helix angle 38° • centre cutting capability • WK40RC • Dc=12mm • R=1,65mm • Z=4
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

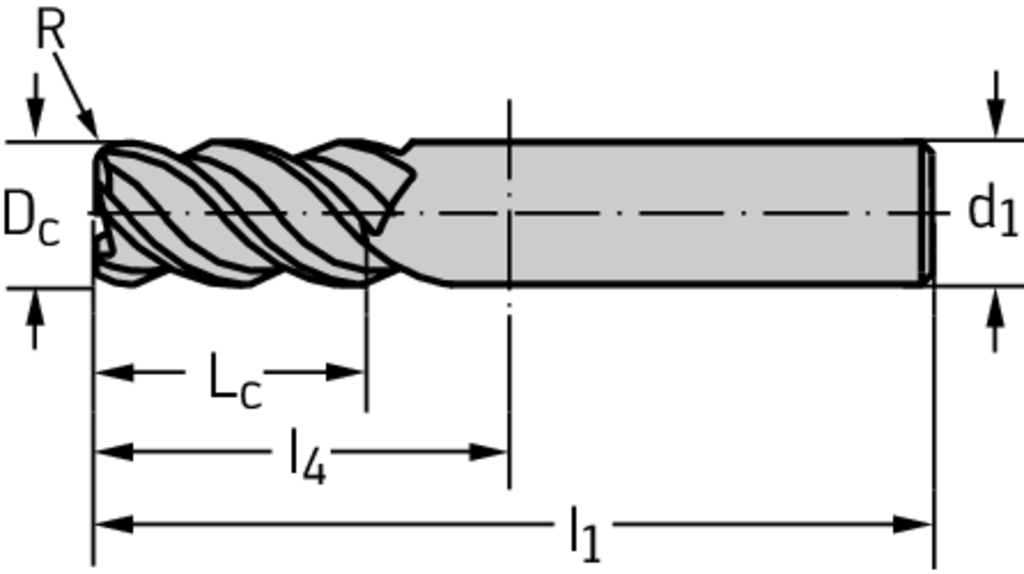

PRODUCT ATTRIBUTES
Tool designation (Designation) MC251-12.0-A4B165-WK40RC
Cutting edge diameter (D c) 12 mm
Corner radius (r) 1.65 mm
Cutting edge length (L c) 26 mm
Overall length (l 1) 83 mm
Functional length (l 4) 38 mm
Shank diameter (d 1) 12 mm
Number of teeth (Z) 4
Insert Shape MC
DESCRIPTION & FEATURES
Solid carbide shoulder/slot mills MC251 • Advance • DIN 6535 HA shank • metric • flute helix angle 38° • centre cutting capability • WK40RC • Dc=12mm • R=1,65mm • Z=4
Article number (J21):
MC251-12.0-A4B165-WK40RC
Standard number of properties layout (NSM):
DIN4000-82
Company code (J3):
W
Tool style code (BLD):
2
Cutting diameter (A1):
12 mm
Depth of cut maximum (B2):
26 mm
Protruding length (B3):
38 mm
Overall length (B5):
83 mm
Functional length (B71):
83 mm
Neck length (B9):
26
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
01
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0120
Connection diameter machine side (C3):
12 mm
ISO-tolerance class shank diameter (C31):
h5
Shank length (C4):
45 mm
Rotational speed maximum (D6):
80000 1/min
Weight of item (D7):
0,123 kg
