5/16" Solid carbide shoulder/slot mills MC326 MC326.7.94A4D076-WK40TF

€

77.28

EX VAT

€

95.05

INC VAT

Walter Prototyp

Solid carbide shoulder/slot mills MC326 • Supreme • Parallel shank • inch • flute helix angle 50° • Type N 50 • centre cutting capability • WK40TF • Dc=7,94mm • R=0,76mm • Z=4

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

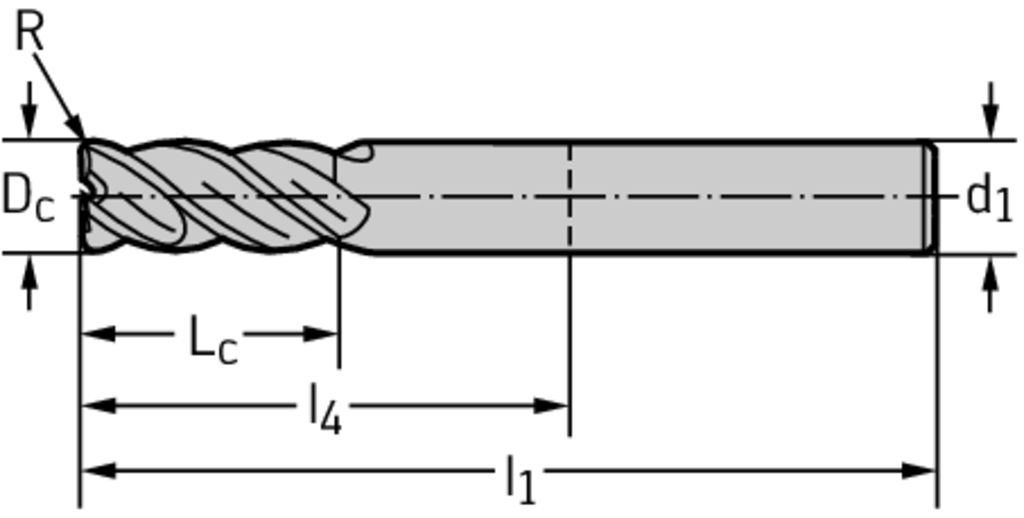

Tool designation (Designation) MC326.7.94A4D076-WK40TF

Cutting edge diameter (D c) 5/16" Inch_No_Let

Corner radius (r) 0,03 inch

Cutting edge length (L c) 0,813 inch

Overall length (l 1) 3 inch

Functional length (l 4) 1,437 inch

Shank diameter (d 1) 0,313 inch

Number of teeth (Z) 4

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide shoulder/slot mills MC326 • Supreme • Parallel shank • inch • flute helix angle 50° • Type N 50 • centre cutting capability • WK40TF • Dc=7,94mm • R=0,76mm • Z=4

Article number (J21):

MC326.7.94A4D076-WK40TF

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

7,94 mm

Neck diameter (A5):

7,99 mm

Depth of cut maximum (B2):

20,638 mm

Protruding length (B3):

36,5 mm

Overall length (B5):

76,2 mm

Functional length (B71):

76,2 mm

Neck length (B9):

20,638

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0312

Connection diameter machine side (C3):

7,938 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

60 mm

Rotational speed maximum (D6):

80000 1/min
