1/2" Solid carbide shoulder milling cutters MC187 MC187.12.7A6D076-WB10TG

€

187.50

EX VAT

€

230.63

INC VAT

Walter Prototyp

Solid carbide shoulder milling cutters MC187 • Advance • Parallel shank • inch • flute helix angle 50° • WB10TG • Dc=12,7mm • R=0,76mm • Z=6

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

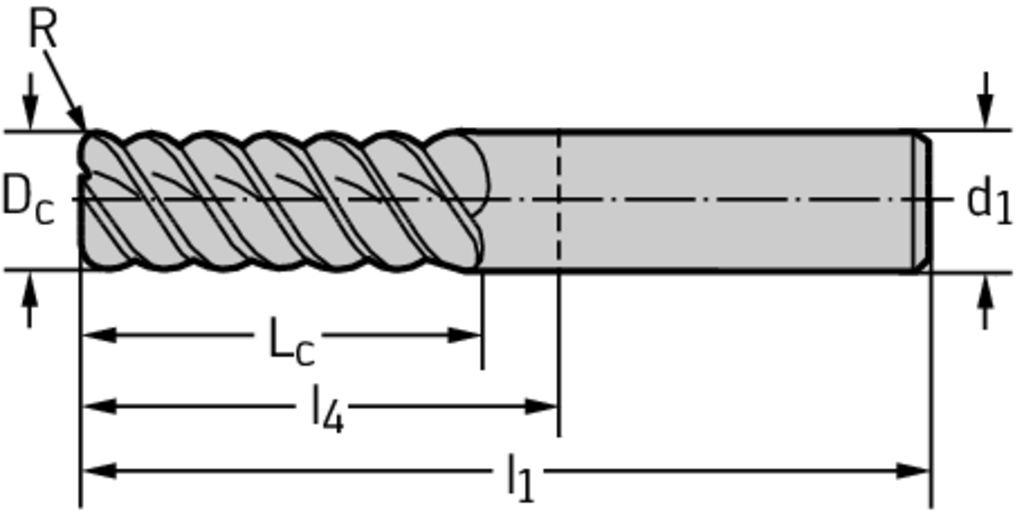

Tool designation (Designation) MC187.12.7A6D076-WB10TG

Cutting edge diameter (D c) 1/2" Inch_No_Let

Corner radius (r) 0,03 inch

Cutting edge length (L c) 1 inch

Overall length (l 1) 4,5 inch

Functional length (l 4) 2,717 inch

Shank diameter (d 1) 0,5 inch

Number of teeth (Z) 6

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide shoulder milling cutters MC187 • Advance • Parallel shank • inch • flute helix angle 50° • WB10TG • Dc=12,7mm • R=0,76mm • Z=6

Article number (J21):

MC187.12.7A6D076-WB10TG

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

12,7 mm

Depth of cut maximum (B2):

25,4 mm

Protruding length (B3):

69 mm

Overall length (B5):

114,3 mm

Functional length (B71):

114,3 mm

Neck length (B9):

25,4

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0500

Connection diameter machine side (C3):

12,7 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

80 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,212 kg
