Solid carbide shoulder milling cutters MC128 MC128.6.35A6C-WJ30TF

Solid carbide shoulder milling cutters MC128 MC128.6.35A6C-WJ30TF

€

40.20

EX VAT

€

49.45

INC VAT

Walter Prototyp

Solid carbide shoulder milling cutters MC128 MC128.6.35A6C-WJ30TF

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

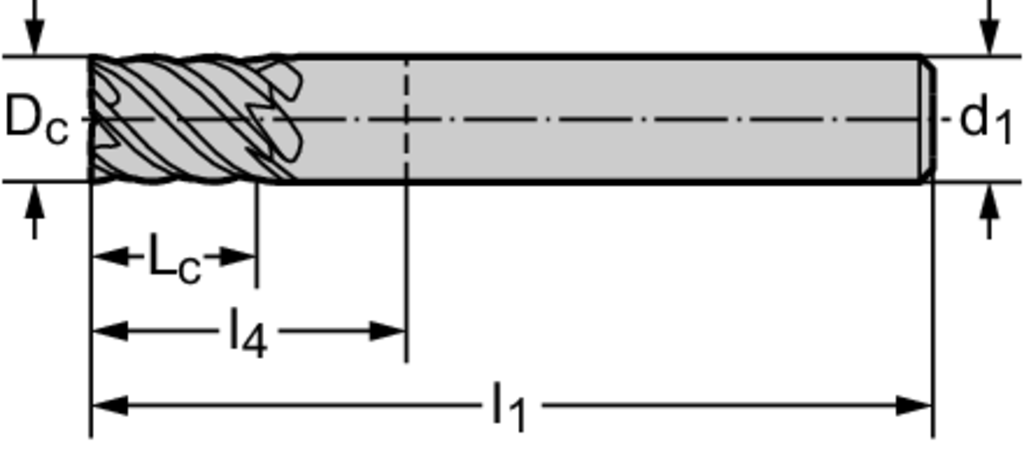

Tool designation (Designation) MC128.6.35A6C-WJ30TF

Cutting edge diameter (D c) 1/4" Inch_No_Let

Cutting edge length (L c) 0,5 inch

Overall length (l 1) 2,5 inch

Functional length (l 4) 1,083 inch

Shank diameter (d 1) 0,25 inch

Number of teeth (Z) 6

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide shoulder milling cutters MC128 • Advance • Parallel shank • inch • flute helix angle 50° • Type N 50 • WJ30TF • Dc=6,35mm • Z=6

Article number (J21):

MC128.6.35A6C-WJ30TF

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

6,35 mm

Depth of cut maximum (B2):

12,7 mm

Protruding length (B3):

27,5 mm

Overall length (B5):

63,5 mm

Functional length (B71):

63,5 mm

Neck length (B9):

12,7

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0250

Connection diameter machine side (C3):

6,35 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,028 kg

Rake angle radial (E2):

10,5 °

Rake angle axial (E3):

13,5 °

Ramping angle maximum (E4):

4 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

50 °

Corner chamfer width (G2):

0,1 mm

Corner chamfer angle (G3):

45 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30TF

Body material code (H4):

Coating (H5):

TiAlN

Standard (J1):

STANDARD

Data chip provision (J7):
