Solid carbide micro twist drills DB130-05-01.200U0-WJ30UU

Solid carbide micro twist drills DB130-05-01.200U0-WJ30UU

€

10.95

EX VAT

€

13.47

INC VAT

Walter Titex

Solid carbide micro twist drills DB130-05-01.200U0-WJ30UU

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

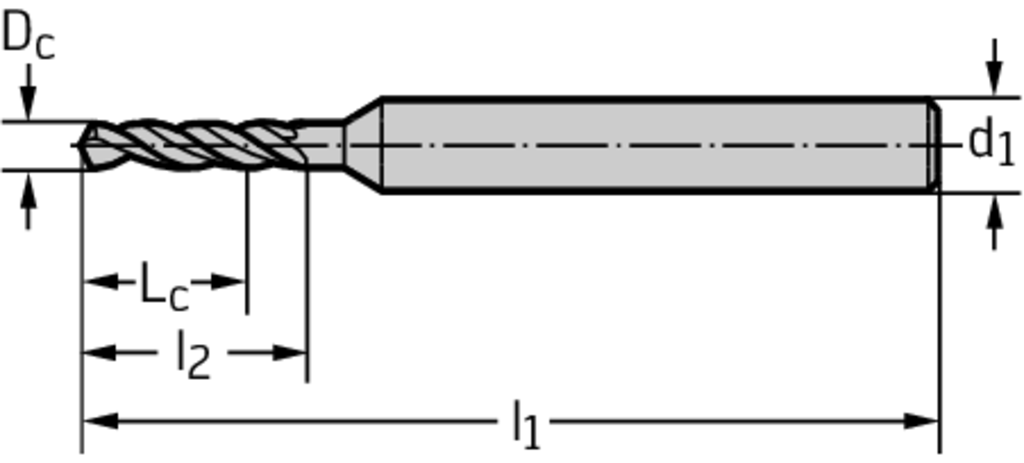

Tool designation (Designation) DB130-05-01.200U0-WJ30UU

Cutting edge diameter (D c) 1.2 mm

Cutting edge length (L c) 6 mm

Overall length (l 1) 25 mm

Projection length (l 2) 8,5 mm

Shank diameter (d 1) 1,5 mm

Insert Shape DB

DESCRIPTION & FEATURES

Solid carbide micro twist drills DB130 • Advance • Advance • DIN 1899 • 5xD • Cylindrical shank • point angle 118° • Dc=1,2mm

Article number (J21):

DB130-05-01.200U0-WJ30UU

Standard number of properties layout (NSM):

DIN4000-81

Company code (J3):

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

1,2 mm

Protruding length (B3):

10,761 mm

Usable length (B4):

6 mm

Overall length (B5):

25 mm

Length chip flute (B6):

8,5 mm

Point length (B7):

0,361 mm

Functional length (B71):

24,64 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0015

Connection diameter machine side (C3):

1,5 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

14,24 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,001 kg

Point angle 1st step (E1):

118 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30UU

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

DIN 1899

Data chip provision (J7):

Coolant Type:

Without Through Coolant
