Solid carbide micro pilot drills A6181AML-2.9

Solid carbide micro pilot drills A6181AML-2.9

Solid carbide micro pilot drills A6181AML-2.9

Solid carbide micro pilot drills A6181AML-2.9

Solid carbide micro pilot drills A6181AML-2.9

€

96.70

EX VAT

€

118.94

INC VAT

Walter Titex

Solid carbide micro pilot drills A6181AML-2.9

P

H

M

S

K

N

O

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

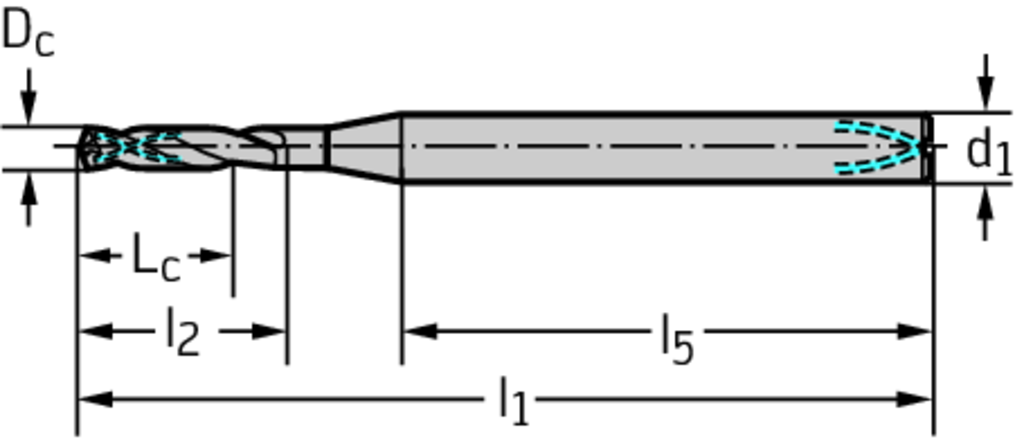

Tool designation (Designation) A6181AML-2.9

Cutting edge diameter (D c) 2.9 mm

Cutting edge length (L c) 10 mm

Overall length (l 1) 62 mm

Projection length (l 2) 15 mm

Shank length (l 5) 44 mm

Shank diameter (d 1) 3 mm

Insert Shape A6

DESCRIPTION & FEATURES

Solid carbide micro pilot drills A6181AML • Xtreme Pilot 150 • 2xD • DIN 6535 HA shank • point angle 150° • Dc=2,9mm

Article number (J21):

A6181AML-2.9

Standard number of properties layout (NSM):

DIN4000-81

Company code (J3):

W

Tool style code (BLD):

1

Cutting diameter 1st step minimum (A11):

2,9 mm

Protruding length (B3):

17,999 mm

Usable length (B4):

10 mm

Overall length (B5):

62 mm

Length chip flute (B6):

15 mm

Point length (B7):

0,389 mm

Functional length (B71):

61,61 mm

Neck length (B9):

10

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

01

Connection code unit base machine side (C14):

1

Connection code style machine side (C15):

5

Connection size code machine side (C2):

0030

Connection diameter machine side (C3):

3 mm

ISO-tolerance class shank diameter (C31):

h6

Shank length (C4):

44 mm

Flute count (D1):

2

Flute helix hand (D2):

R

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,01 kg

Point angle 1st step (E1):

150 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

1

Coolant exit style code (H22):

3

Grade manufacturer's designation (H3):

AML

Body material code (H4):

H

Coating (H5):

AlTiN

Standard (J1):

TP-NORM 61M

Standard letter to the standard number (J11):

HA

Data chip provision (J7):

0

Coolant Type:

Through Coolant
