10mm Solid carbide ball nose copy milling cutters MC482-10.0A4B-WB10TG

10mm Solid carbide ball nose copy milling cutters MC482-10.0A4B-WB10TG

€

121.50

EX VAT

€

149.45

INC VAT

Walter Prototyp

Solid carbide ball nose copy milling cutters MC482 • Advance • DIN 6535 HA shank • WB10TG • metric • flute helix angle 30° • Dc=10mm • R=5mm • Z=4

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

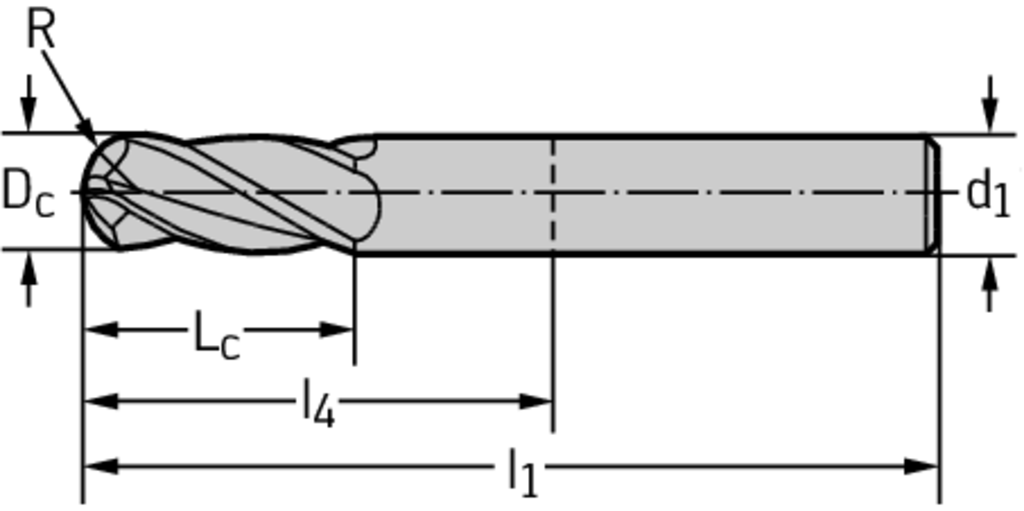

Tool designation (Designation) MC482-10.0A4B-WB10TG

Cutting edge diameter (D c) 10 mm

Corner radius (r) 5 mm

Cutting edge length (L c) 8 mm

Overall length (l 1) 72 mm

Functional length (l 4) 32 mm

Connection size code (d 1) 10 mm

Number of teeth (Z) 4

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide ball nose copy milling cutters MC482 • Advance • DIN 6535 HA shank • WB10TG • metric • flute helix angle 30° • Dc=10mm • R=5mm • Z=4

Article number (J21):

MC482-10.0A4B-WB10TG

Ball nose:

Yes

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

10 mm

Depth of cut maximum (B2):

8 mm

Protruding length (B3):

32 mm

Overall length (B5):

72 mm

Functional length (B71):

72 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code style machine side (C15):

Connection size code machine side (C2):

0100

Connection diameter machine side (C3):

10 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

40 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,086 kg

Rake angle radial (E2):

-5,5 Â°
