Shank tool – Rigid clamping DDNNN2525M15Shank tool – Rigid clamping DDNNN2525M15
Shank tool – Rigid clamping DDNNN2525M15 Shank tool – Rigid clamping DDNNN2525M15

Shank tool – Rigid clamping DDNNN2525M15

€
102.00
EX VAT
€
125.46
INC VAT
Walter
Shank tool – Rigid clamping DDNNN2525M15
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

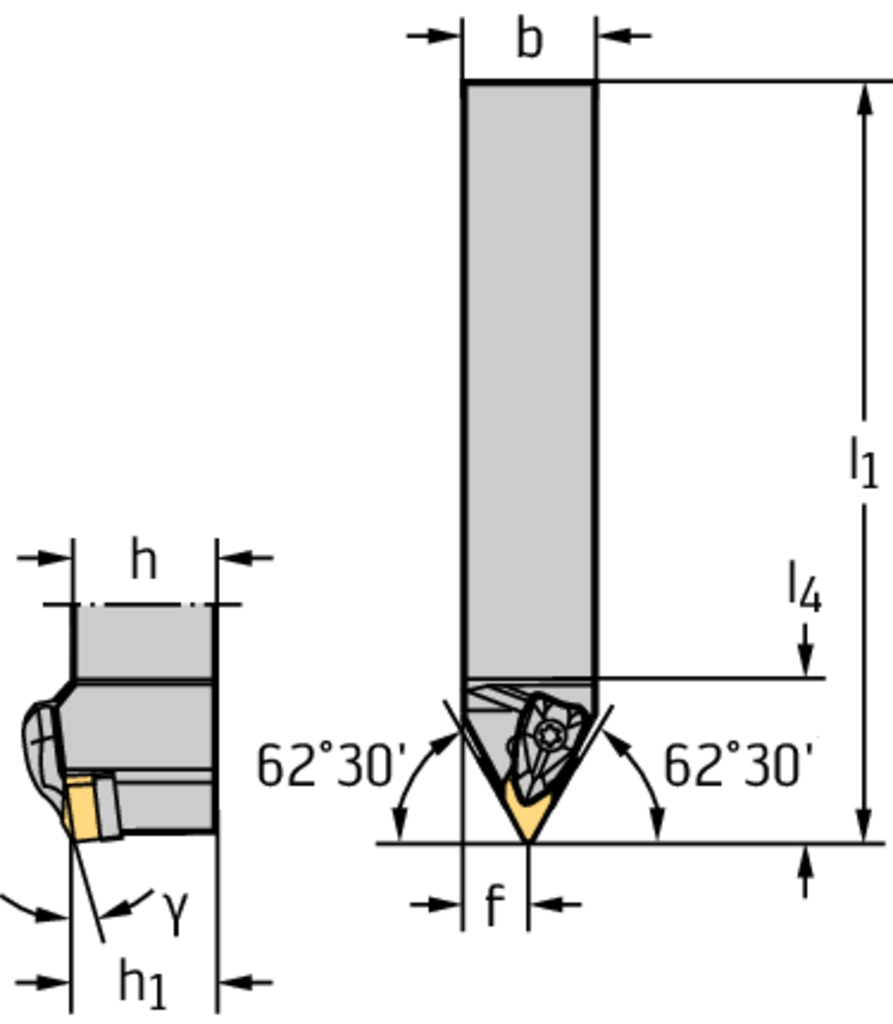

Tool designation (Designation) DDNNN2525M15
Shank height (h = h 1) 25 mm
Shank width (b) 25 mm
Functional width (f) 13 mm
Functional length (l 1) 150 mm
Maximum projection length (l 4) 40,8 mm
Orthogonal rake angle (γ) -5 Deg
Inclination angle (λ s) -9 Deg
Insert Shape DD
DESCRIPTION & FEATURES
Shank tool – Rigid clamping DDNN • Walter Turn • metric • Square shank • κ=62,5° • neutral • 25x25mm • rhombic insert • DN .. 1506 ..
Article number (J21):
DDNNN2525M15
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Cutting edge length (A1):
15,5 mm
Functional width (A2):
13 mm
Functional length (A3):
150 mm
Functional height (A4):
25 mm
Overall length (B5):
150 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2525
Shank height (C4):
25 mm
Shank width (C5):
25 mm
Weight of item (D7):
0,713 kg
Tool cutting edge angle (E1):
62,5 °
Tool cutting edge angle type code (E2):
S
Insert included angle (E3):
55 °
Rake angle orthogonal (E4):
-5 °
Inclination angle (E5):
-9 °
Cutting direction (F1):
Neutral
Clamping type code (F5):
D
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
DNMG 15 06 08
Data chip provision (J7):
0
Protruding length (LPR):
40,8 mm
Insert Type:
DN .. 1506 ..
