Shank tool – Rigid clamping DTGN...-P DTGNR2020X16-PShank tool – Rigid clamping DTGN...-P DTGNR2020X16-P
Shank tool – Rigid clamping DTGN...-P DTGNR2020X16-P Shank tool – Rigid clamping DTGN...-P DTGNR2020X16-P

Shank tool – Rigid clamping DTGN...-P DTGNR2020X16-P

€
235.00
EX VAT
€
289.05
INC VAT
Walter
Shank tool – Rigid clamping DTGN...-P DTGNR2020X16-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

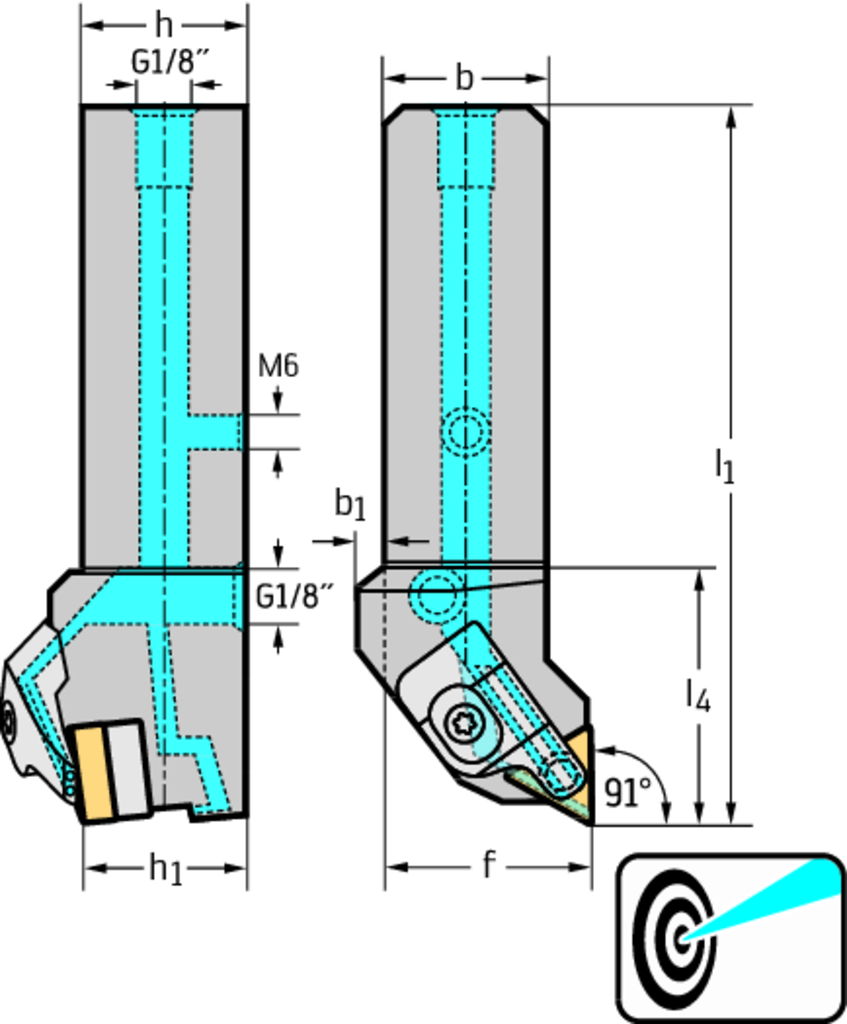

Tool designation (Designation) DTGNR2020X16-P
Shank height (h = h 1) 20 mm
shank width (b) 20 mm
Width (b 1) 5 mm
Functional width (f) 25 mm
Functional length (l 1) 115 mm
Functional length (l 4) 38,5 mm
Orthogonal rake angle (γ) -6 Deg
Inclination angle (λ s) -6 Deg
Insert Shape DT
DESCRIPTION & FEATURES
Shank tool – Rigid clamping DTGN...-P • Walter Turn • metric • Square shank • κ=91° • Right • 20x20mm • triangular insert • TN .. 1604 ..
Article number (J21):
DTGNR2020X16-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Cutting edge length (A1):
16,5 mm
Functional width (A2):
25 mm
Functional length (A3):
115 mm
Functional height (A4):
20 mm
Overall length (B5):
115 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2020
Shank height (C4):
20 mm
Shank width (C5):
20 mm
Weight of item (D7):
0,398 kg
Tool cutting edge angle (E1):
91 °
Tool cutting edge angle type code (E2):
S
Insert included angle (E3):
60 °
Rake angle orthogonal (E4):
-6 °
Inclination angle (E5):
-6 °
Cutting direction (F1):
Right
Tool holder shape code (F2):
A
Clamping type code (F5):
D
Coolant entry style code (H21):
3
Coolant exit style code (H22):
7
Master insert identification (J42):
TNMG 16 04 08
Data chip provision (J7):
0
Protruding length (LPR):
115 mm
Insert Type:
TN .. 1604 ..
