Positive square SDET1204AZN-F57 WEP20

€

11.94

EX VAT

€

14.69

INC VAT

Walter

Positive square SDET1204AZN-F57 WEP20

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

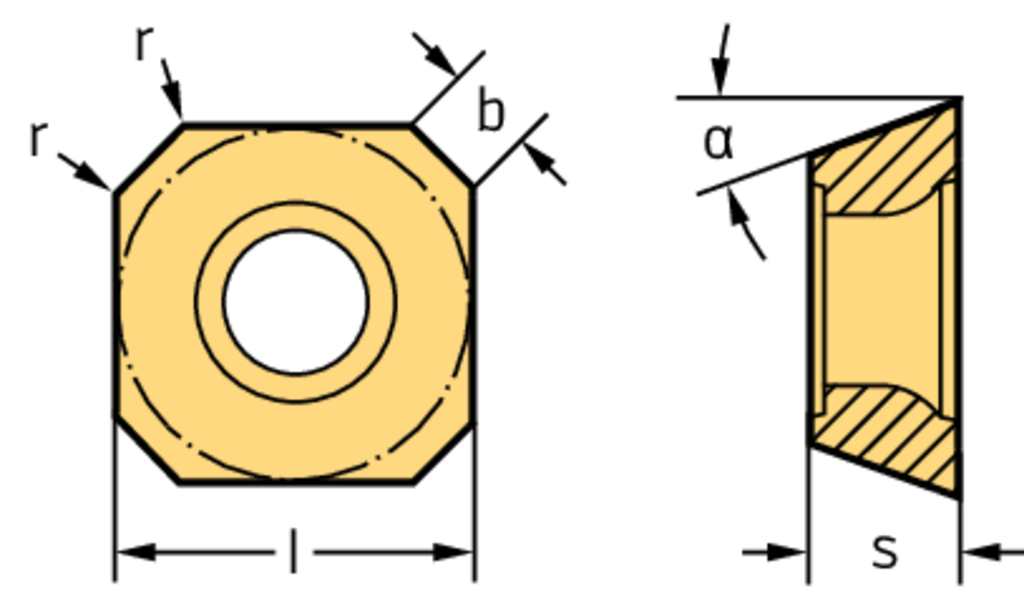

PRODUCT ATTRIBUTES

Tool designation (Designation) SDET1204AZN-F57 WEP20

Indexable insert tolerance class (Tolerance class) E

Number of cutting edges (Number of cutting edges) 4

Cutting edge length (l) 12,7 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 15 Deg

Corner radius (r) 0,3 mm

Wiper cutting edge length (b) 1,8 mm

Insert Shape SD

DESCRIPTION & FEATURES

Positive square SDET ...-F57 • clearance angle major=15° • WEP20 • Corner radius=0,3mm • wiper edge length=1,8mm

Article number (J21):

SDET1204AZN-F57 WEP20

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

15 °

Cutting edge length (B1):

12,7 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

4,76 mm

Corner radius (D1):

0,3 mm

Wiper edge length (D6):

1,81 mm

Weight of item (D75):

0,004 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

F57

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,76 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WEP20

Coating (H5):

Cermet

Tipped cutting edge code (H6):

Standard designation (J11):

SDET1204AZN
