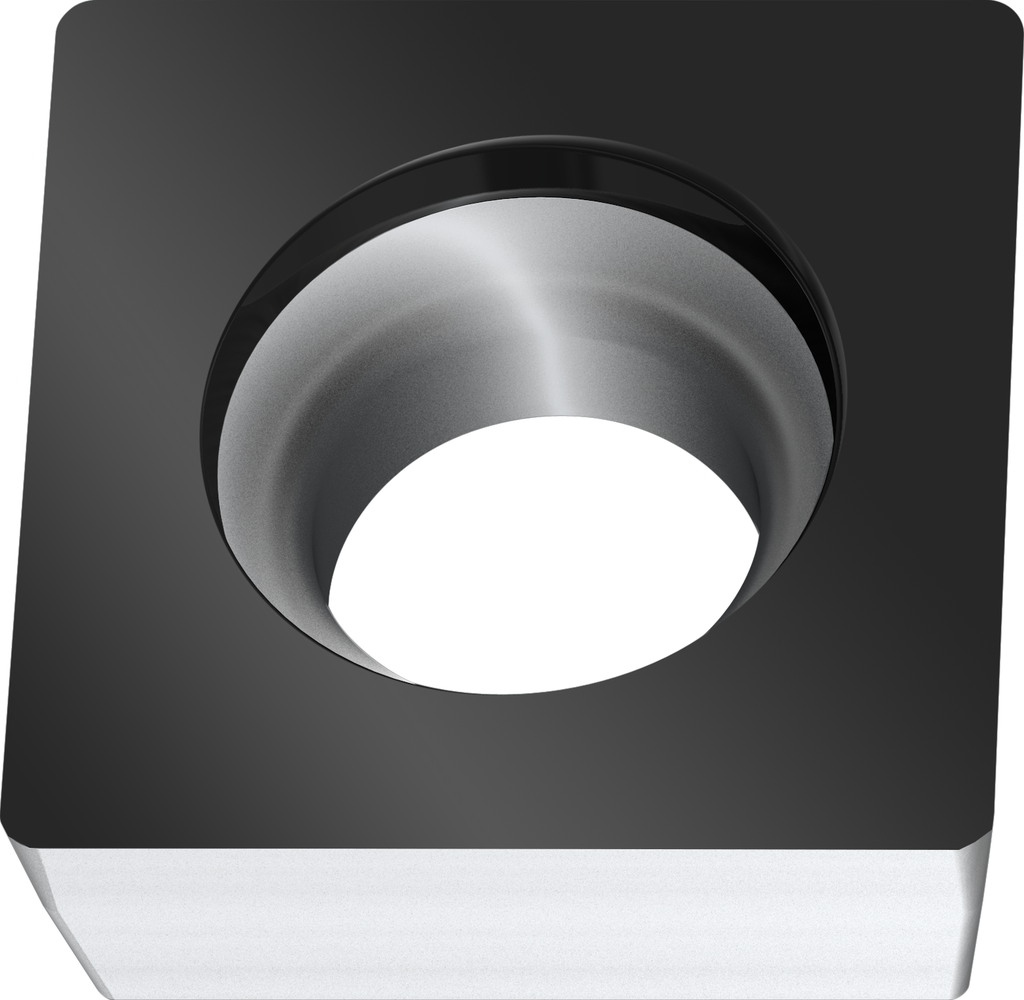

Positive square SCMW09T308-RK6 WKK20S

€

6.59

EX VAT

€

8.11

INC VAT

Walter

Positive square SCMW09T308-RK6 WKK20S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

Tool designation (Designation) SCMW09T308-RK6 WKK20S

Cutting edge length (l) 9,53 mm

Corner radius (r) 0,8 mm

Feed per revolution (f) 0,16 - 0,35 mm

Depth of cut (a p) 0,6 - 4 mm

Insert Shape SC

DESCRIPTION & FEATURES

Positive square SCMW ...-RK6 • Tigertec Silver • WKK20S • r=0,8mm

Article number (J21):

SCMW09T308-RK6 WKK20S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

7 °

Cutting edge length (B1):

9,525 mm

Inscribed circle diameter (B3):

9,525 mm

Insert thickness (C1):

3,969 mm

Corner radius (D1):

0,8 mm

Weight of item (D75):

0,004 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Chip breaker manufacturers designation (E9):

RK6

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

3,969 mm

Insert mounting style code (G5):

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKK20S

Coating (H5):

TiCN+Al2O3+(TiCN)

Tipped cutting edge code (H6):

Standard designation (J11):

SCMW09T308
