Positive square SEKN1203AFN WKP35SPositive square SEKN1203AFN WKP35S

Positive square SEKN1203AFN WKP35S

11.89
EX VAT
14.62
INC VAT
Walter
Positive square SEKN1203AFN WKP35S
P
H
M
S
K
N
O
= First choice
= Second choice
PRODUCT ATTRIBUTES

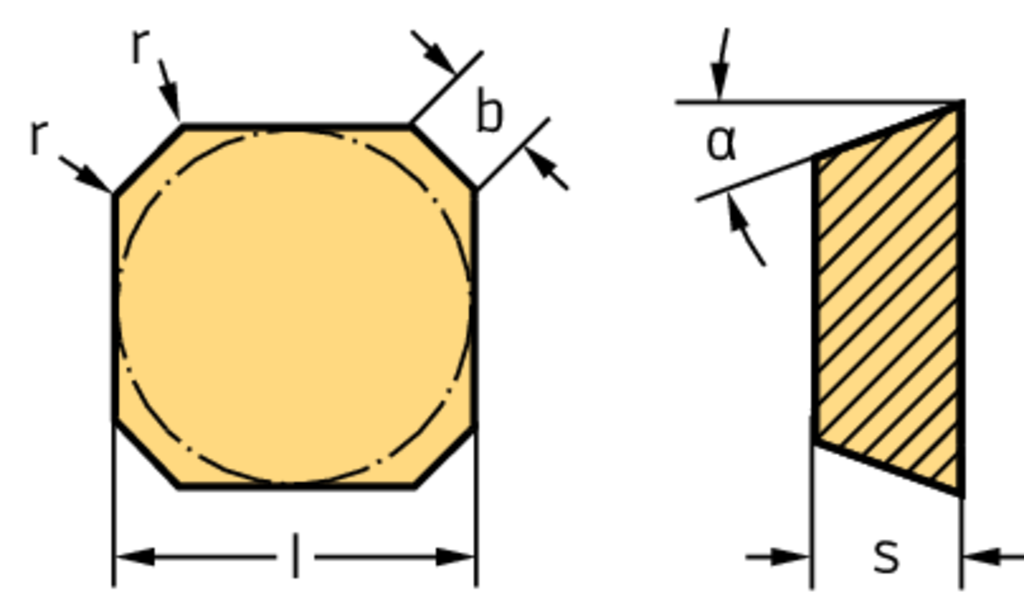

Tool designation (Designation) SEKN1203AFN WKP35S
Indexable insert tolerance class (Tolerance class) K
Number of cutting edges (Number of cutting edges) 4
Cutting edge length (l) 12,7 mm
Insert thickness (s) 3,18 mm
Clearance angle major (α) 20 Deg
Corner radius (r) 0,63 mm
Wiper cutting edge length (b) 1,9 mm
Insert Shape SE
DESCRIPTION & FEATURES
Positive square SEKN ...-A57 • clearance angle major=20° • WKP35S • Tigertec Silver • Corner radius=0,6mm • wiper edge length=1,9mm
Article number (J21):
SEKN1203AFN WKP35S
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-76
Tool style code (BLD):
2
Insert included angle (A1):
90 °
Clearance angle major (A2):
20 °
Cutting edge length (B1):
12,7 mm
Inscribed circle diameter (B3):
12,7 mm
Insert thickness (C1):
3,18 mm
Corner radius (D1):
0,625 mm
Wiper edge length (D6):
1,9 mm
Weight of item (D75):
0,006 kg
Cutting edge condition code (E41):
S
Chip breaker manufacturers designation (E9):
A57
Insert hand (F1):
N
Insert index count (F2):
4
Tolerance class insert (G1):
K
Insert thickness total (G4):
3,18 mm
Insert mounting style code (G5):
1
Coolant supply property (H2):
0
Grade manufacturer's designation (H3):
WKP35S
Coating (H5):
TiCN+Al2O3+(TiCN)
Tipped cutting edge code (H6):
S
Standard designation (J11):
SEKN1203AFN
