Positive square SDGT1204PDR-D57 WKP25S

€

14.25

EX VAT

€

17.53

INC VAT

Walter

Positive square SDGT1204PDR-D57 WKP25S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

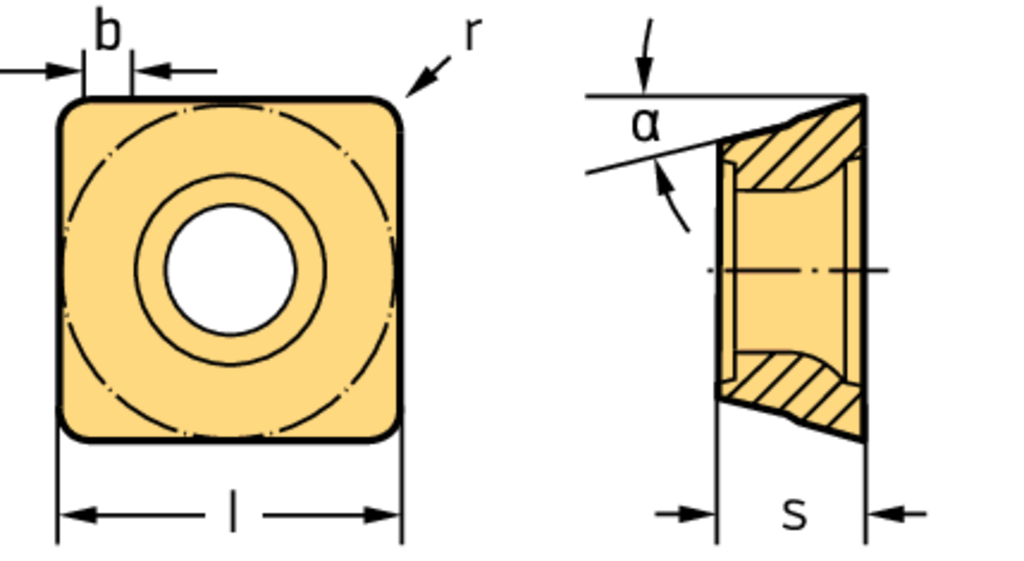

Tool designation (Designation) SDGT1204PDR-D57 WKP25S

Indexable insert tolerance class (Tolerance class) G

Number of cutting edges (Number of cutting edges) 4

Cutting edge length (l) 12,7 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 15 Deg

Corner radius (r) 0,8 mm

Wiper cutting edge length (b) 1,6 mm

Insert Shape SD

DESCRIPTION & FEATURES

Positive square SDGT ...-D57 • clearance angle major=15° • WKP25S • Tigertec Silver • Corner radius=0,8mm • wiper edge length=1,6mm

Article number (J21):

SDGT1204PDR-D57 WKP25S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

15 °

Cutting edge length (B1):

12,7 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

4,76 mm

Corner radius (D1):

0,8 mm

Wiper edge length (D6):

1,595 mm

Weight of item (D75):

0,008 kg

Cutting edge condition code (E41):

Cutting edge effective length (E7):

10,3 mm

Chip breaker manufacturers designation (E9):

D57

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,76 mm

Insert mounting style code (G5):

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKP25S

Coating (H5):

TiCN+Al2O3+(TiCN)

Tipped cutting edge code (H6):

Standard designation (J11):

SDGT1204PDR
