Positive rhombic LPMT150412R-D51 WSP45S

€

14.54

EX VAT

€

17.88

INC VAT

Walter

Positive rhombic LPMT150412R-D51 WSP45S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

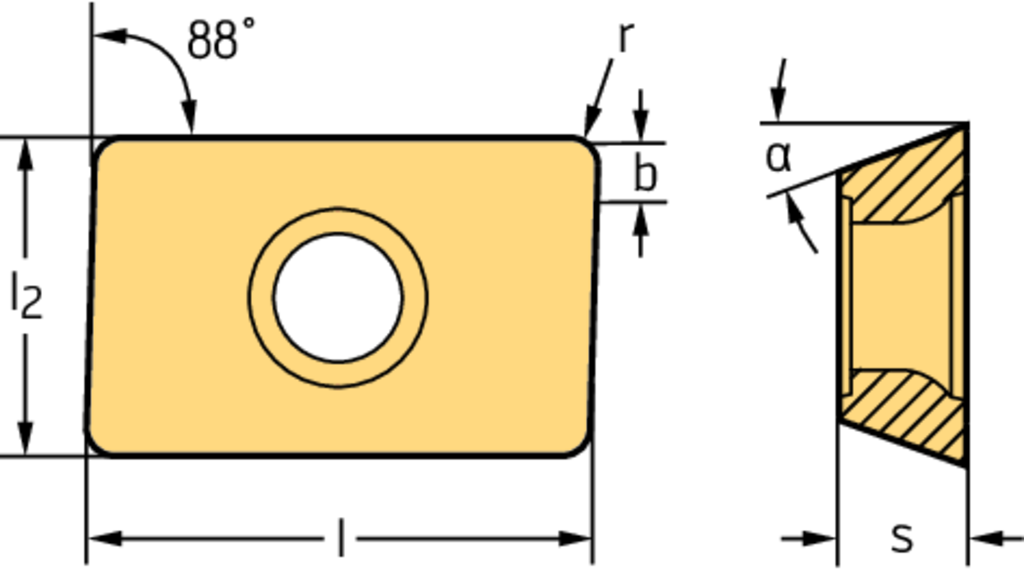

Tool designation (Designation) LPMT150412R-D51 WSP45S

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 2

Indexable insert width (l 2) 12,7 mm

Cutting edge length (l) 15,88 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 11 Deg

Corner radius (r) 1,2 mm

Wiper cutting edge length (b) 1,6 mm

Insert Shape LP

DESCRIPTION & FEATURES

Positive rhombic LPMT ...-D51 • clearance angle major=11° • WSP45S • Corner radius=1,2mm • wiper edge length=1,6mm

Article number (J21):

LPMT150412R-D51 WSP45S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

11 °

Cutting edge length (B1):

15,88 mm

Insert width (B2):

12,7 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

4,76 mm

Corner radius (D1):

1,2 mm

Wiper edge length (D6):

1,6 mm

Weight of item (D75):

0,009 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

D51

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert length (G3):

15,88 mm

Insert thickness total (G4):

4,76 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

5,5 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WSP45S

Coating (H5):

TiAlN+Al2O3+(Al)

Tipped cutting edge code (H6):

Standard designation (J11):

LPMT150412R
