Positive octagonal OPHN0504ZZN-A57 WKP25S

Positive octagonal OPHN0504ZZN-A57 WKP25S

€

13.73

EX VAT

€

16.89

INC VAT

Walter

Positive octagonal OPHN0504ZZN-A57 WKP25S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

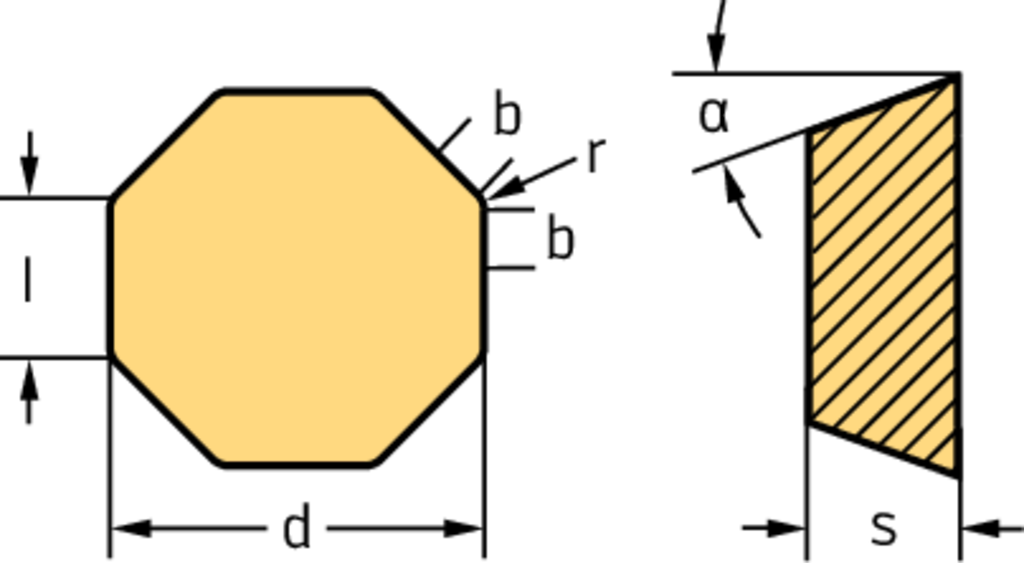

Tool designation (Designation) OPHN0504ZZN-A57 WKP25S

Indexable insert tolerance class (Tolerance class) H

Number of cutting edges (Number of cutting edges) 8

Cutting edge length (l) 12,7 mm

Diameter of inscribed circle (d) 12,7 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 11 Deg

Corner radius (r) 0,4 mm

Wiper cutting edge length (b) 1,2 mm

DESCRIPTION & FEATURES

Positive octagonal OPHN ...-A57 • clearance angle major=11° • WKP25S • Tigertec Silver • Corner radius=0,4mm • wiper edge length=1,2mm

Article number (J21):

OPHN0504ZZN-A57 WKP25S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

135 °

Clearance angle major (A2):

11 °

Cutting edge length (B1):

12,7 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

4,76 mm

Corner radius (D1):

0,4 mm

Wiper edge length (D6):

1,2 mm

Weight of item (D75):

0,008 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

A57

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,76 mm

Insert mounting style code (G5):

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKP25S

Coating (H5):

TiCN+Al2O3+(TiCN)

Tipped cutting edge code (H6):

Standard designation (J11):

OPHN0504ZZN
