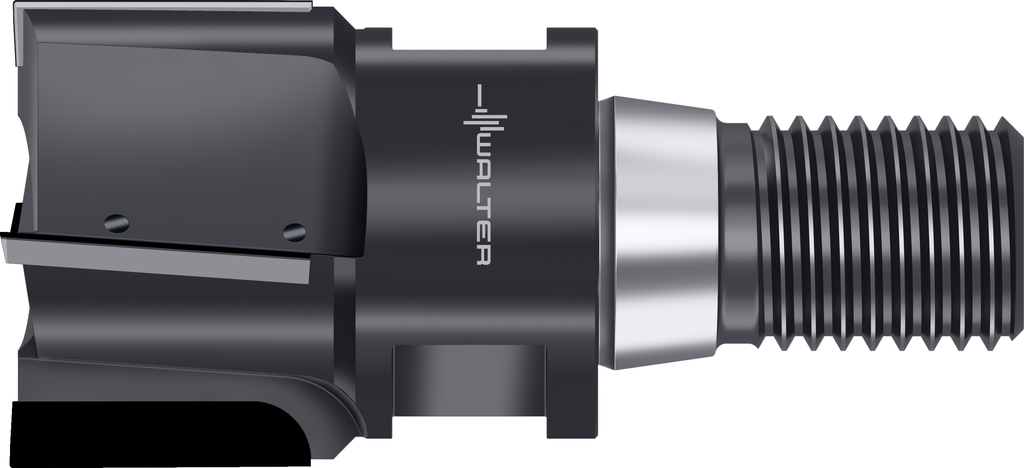

PCD routing cutter MP160-020T04P WDN20

€

1,057.00

EX VAT

€

1,300.11

INC VAT

Walter

PCD routing cutter MP160 • metric • ScrewFit • flute helix angle 4° • WDN20 • Dc=20mm • R=0,2mm • Z=4

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

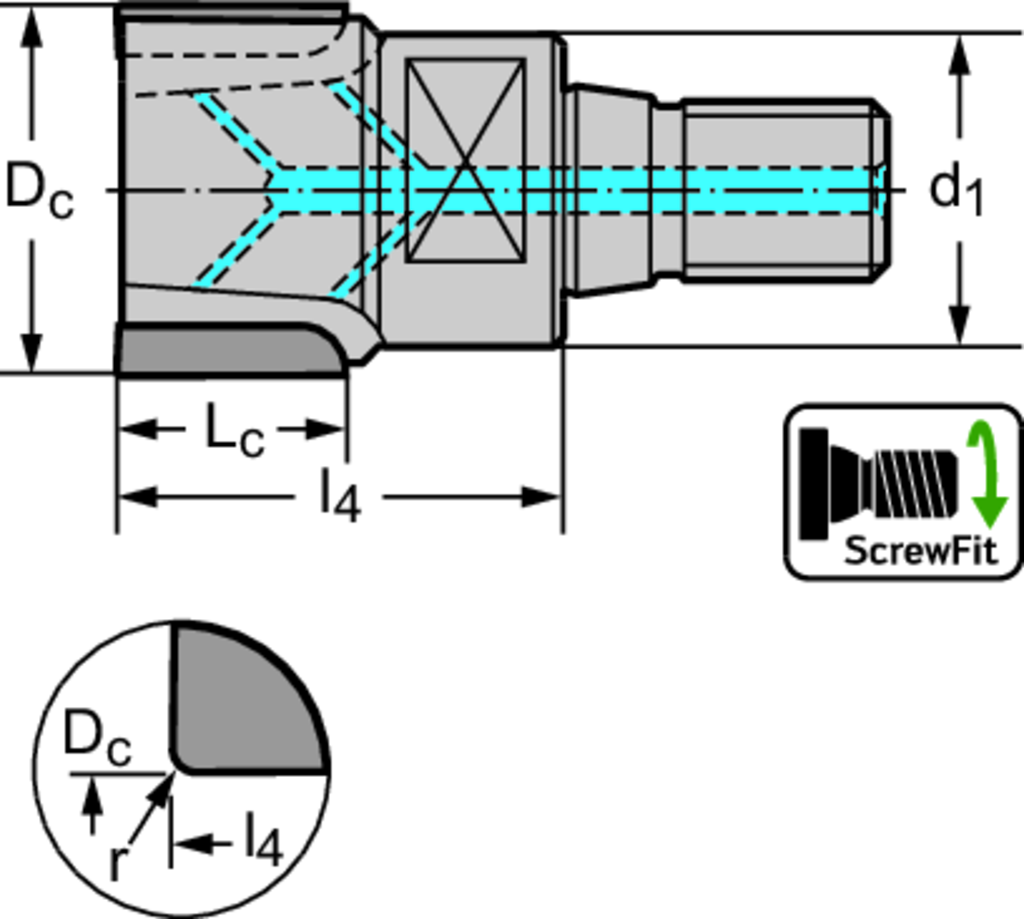

Tool designation (Designation) MP160-020T04P WDN20

Cutting edge diameter (D c) 20 mm

Corner radius (r) 0.2 mm

Cutting edge length (L c) 18 mm

Overall length (l 1) 51 mm

Functional length (l 4) 30 mm

Shank diameter (d 1) T18 mm

Number of teeth (Z) 4

weight of item 0,1 kg

Insert Shape MP

DESCRIPTION & FEATURES

PCD routing cutter MP160 • metric • ScrewFit • flute helix angle 4° • WDN20 • Dc=20mm • R=0,2mm • Z=4

Article number (J21):

MP160-020T04P WDN20

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

20 mm

Neck diameter (A5):

18,5 mm

Depth of cut maximum (B2):

18 mm

Protruding length (B3):

30 mm

Overall length (B5):

51 mm

Functional length (B71):

30 mm

Neck length (B9):

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

180

Connection diameter machine side (C3):

18,5 mm

Rotational speed maximum (D6):

55000 1/min

Weight of item (D7):

0,054 kg

Rake angle radial (E2):

0 ÃÂ°
