PCD – Positive triangular 60° TCGW TCGW16T308FS-9 WDN10PCD – Positive triangular 60° TCGW TCGW16T308FS-9 WDN10
PCD – Positive triangular 60° TCGW TCGW16T308FS-9 WDN10 PCD – Positive triangular 60° TCGW TCGW16T308FS-9 WDN10

PCD – Positive triangular 60° TCGW TCGW16T308FS-9 WDN10

€
116.00
EX VAT
€
142.68
INC VAT
Walter
PCD – Positive triangular 60° TCGW TCGW16T308FS-9 WDN10
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

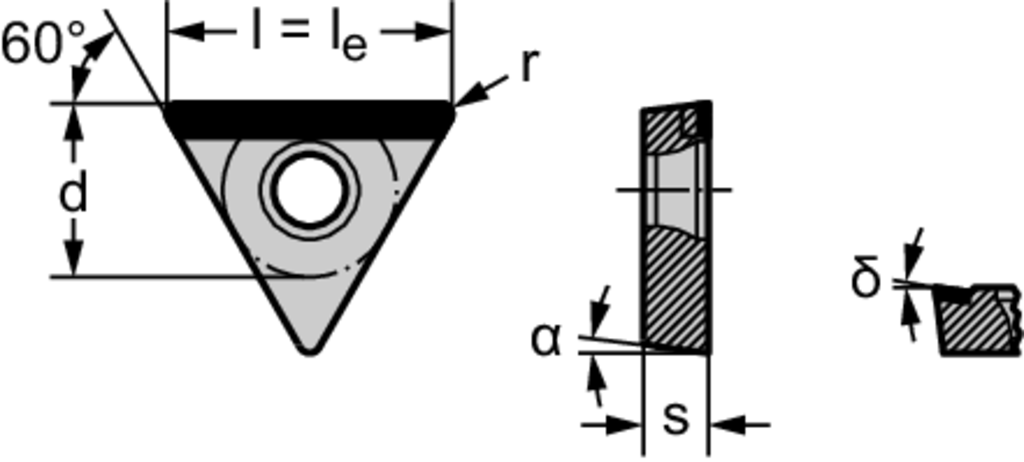

Tool designation (Designation) TCGW16T308FS-9 WDN10
Number of cutting edges (Number of cutting edges) 1
Limited cutting edge length (l e) 15,3 mm
Corner radius (r) 0,8 mm
Clearance angle major (α) 7 Deg
Delta (δ) 0 Deg
Feed per revolution (f) 0,03 - 0,38 mm
Depth of cut (a p) 0,1 - 15,3 mm
Insert Shape TC
DESCRIPTION & FEATURES
PCD – Positive triangular 60° TCGW ...-FS-9 • WDN10 • r=0,8mm
Article number (J21):
TCGW16T308FS-9 WDN10
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-76
Tool style code (BLD):
1
Insert included angle (A1):
60 °
Clearance angle major (A2):
7 °
Cutting edge length (B1):
16,498 mm
Inscribed circle diameter (B3):
9,525 mm
Insert thickness (C1):
3,969 mm
Corner radius (D1):
0,8 mm
Insert rake angle (D7):
0 °
Weight of item (D75):
0,012 kg
Cutting edge condition code (E41):
F
Chip breaker face count (E6):
1
Cutting edge effective length (E7):
15,3 mm
Chip breaker manufacturers designation (E9):
FS-9
Insert hand (F1):
N
Insert index count (F2):
1
Tolerance class insert (G1):
G
Insert thickness total (G4):
3,969 mm
Insert mounting style code (G5):
3
Fixing hole diameter (G6):
4,4 mm
Coolant supply property (H2):
0
Grade manufacturer's designation (H3):
WDN10
Coating (H5):
PCD
Tipped cutting edge code (H6):
S
Standard designation (J11):
TCGW16T308
