Octagonal face milling cutters M5004.072-B19-06-03

Octagonal face milling cutters M5004.072-B19-06-03

€

649.00

EX VAT

€

798.27

INC VAT

Walter

Octagonal face milling cutters M5004.072-B19-06-03

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

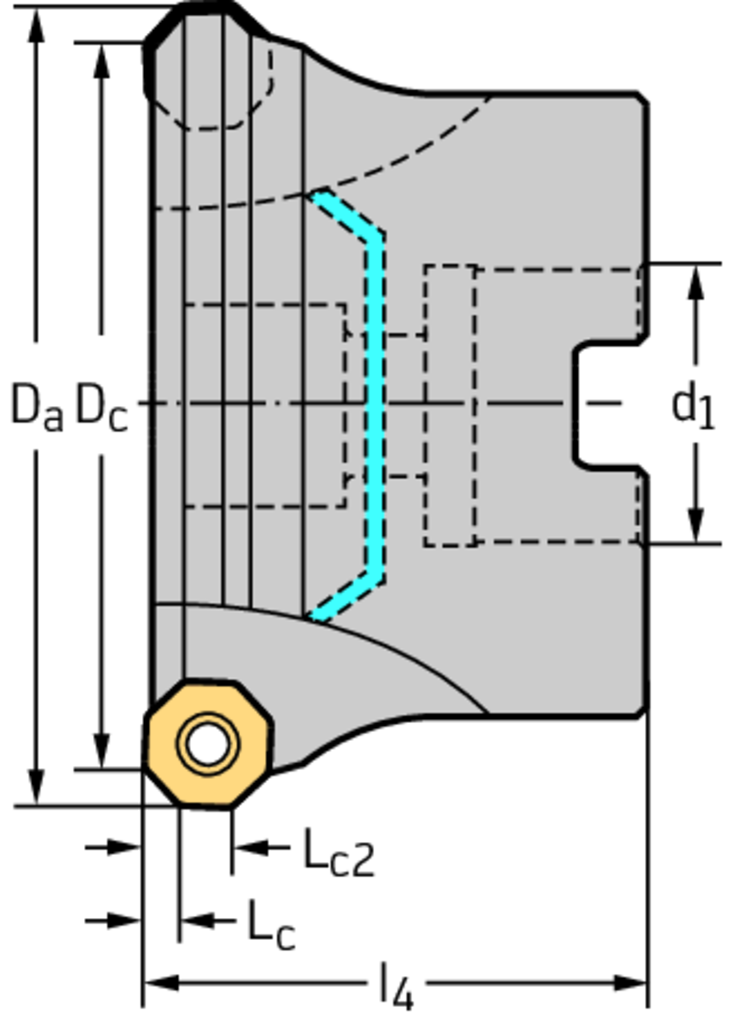

PRODUCT ATTRIBUTES

Tool designation (Designation) M5004.072-B19-06-03

Cutting edge diameter (D c) 2,5 inch

Maximum cutting diameter (D a) 2,815 inch

Shank diameter (d 1) 3/4 inch

Functional length (l 4) 1,575 inch

Cutting edge length (L c) 0,118 inch

Shank diameter length (L c2) 0,315 inch

Number of teeth (Z) 6

weight of item 0,5 lbs

Number of indexable inserts (No. of indexable inserts) 6

Insert Shape M5

DESCRIPTION & FEATURES

Octagonal face milling cutters M5004 • Parallel bore DIN 138 transverse keyway • κ=43° • inch • OD .. 0504 .. • Dc=64mm • Z=6

Article number (J21):

M5004.072-B19-06-03

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

63,5 mm

Cutting diameter maximum (A2):

71,5 mm

Body diameter (A3):

70,01 mm

Hub diameter (A4):

44,45 mm

Counterbore diameter connection bore (A5):

15,88 mm

Cutting depth maximum (B2):

3 mm

Overall length (B5):

40 mm

Counterbore depth connection bore (B6):

15 mm

Connection code type machine side (C11):

FDA

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0750

Connection diameter machine side (C3):

19,05 mm

Adjustment property (D4):

Rotational speed maximum (D6):

19700 1/min

Weight of item (D7):

0,478 kg

Tool cutting edge angle (E1):

43 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

3,2 °

Plunge depth maximum (E5):

1 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Standard (J1):

ISO6462

Standard letter to the standard number (J11):

Master insert identification, position A (J42):

ODHX0504ZZR-A57

Data chip provision (J7):

Octagonal face milling cutters M5004.072-B19-06-03

Octagonal face milling cutters M5004.072-B19-06-03 has been added to your cart.
