Negative triangular P23696-1.0 WSP45G

€

22.00

EX VAT

€

27.06

INC VAT

Walter

Negative triangular P23696-1.0 WSP45G

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

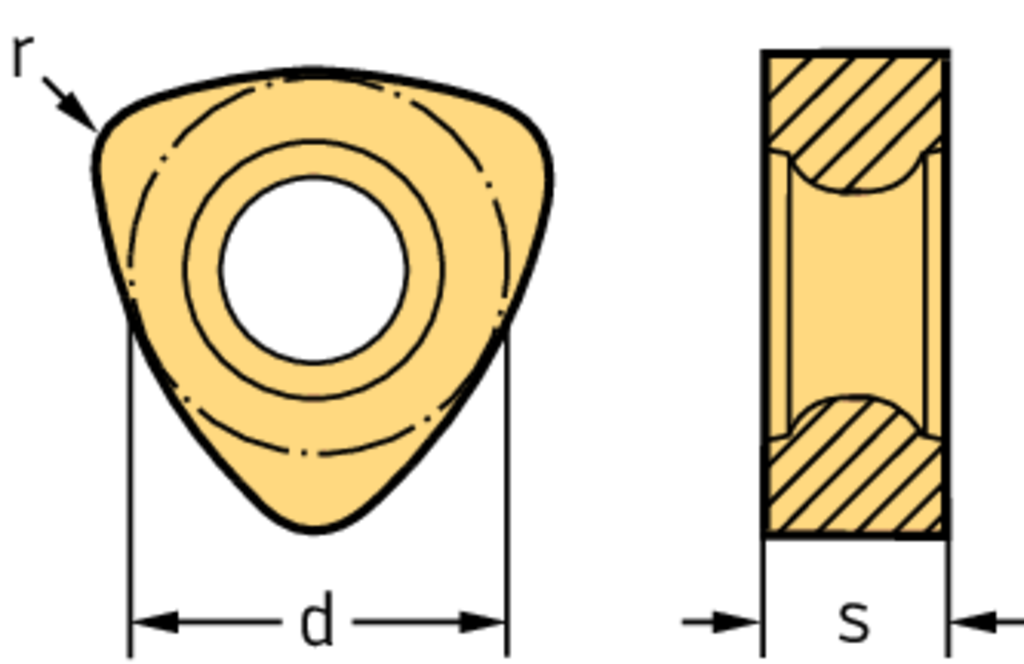

Tool designation (Designation) P23696-1.0 WSP45G

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 6

Diameter of inscribed circle (d) 9 mm

Insert thickness (s) 5,31 mm

Corner radius (r) 1,2 mm

Insert Shape P2

DESCRIPTION & FEATURES

Negative triangular P23696 ...-F55 • clearance angle major=0° • WSP45G • Tigertec Gold • Corner radius=1,2mm

Article number (J21):

P23696-1.0 WSP45G

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

60 °

Clearance angle major (A2):

0 °

Inscribed circle diameter (B3):

9 mm

Insert thickness (C1):

5,31 mm

Corner radius (D1):

1,2 mm

Weight of item (D75):

0,005 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

F55

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

5 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WSP45G

Coating (H5):

TiAlN+Al2O3+(ZrN)

Tipped cutting edge code (H6):
