Negative square SNHQ1205ZZR-A57T WAK15

€

27.09

EX VAT

€

33.32

INC VAT

Walter

Negative square SNHQ1205ZZR-A57T WAK15

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

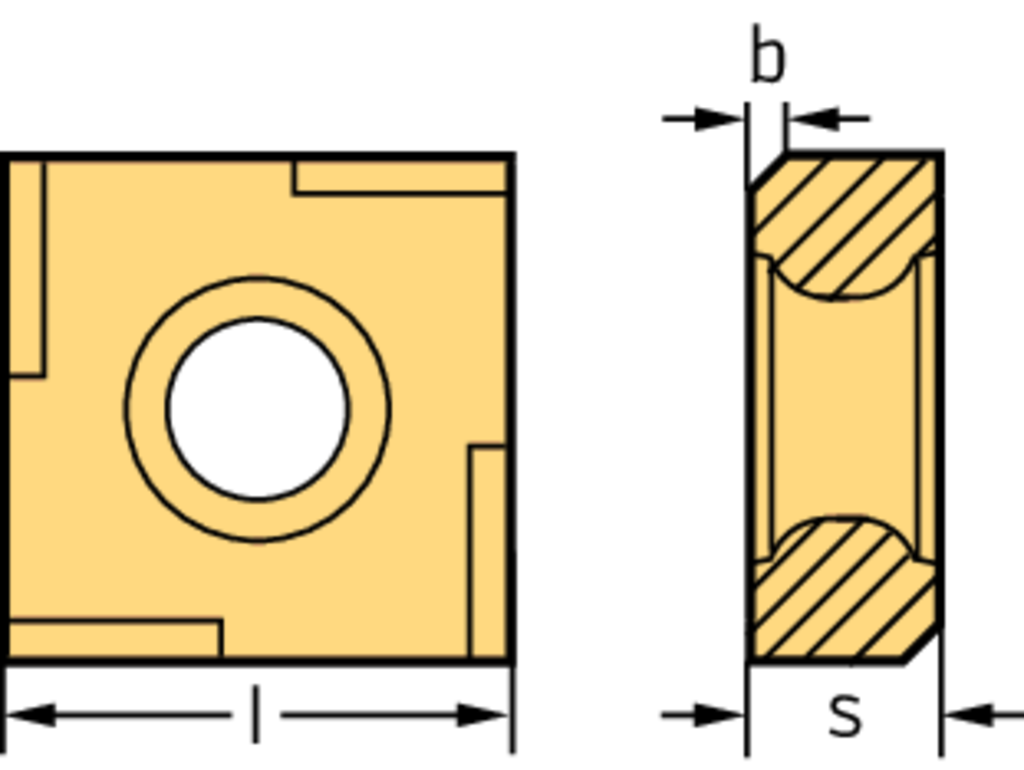

Tool designation (Designation) SNHQ1205ZZR-A57T WAK15

Number of cutting edges (Number of cutting edges) 8

Cutting edge length (l) 12 mm

Insert thickness (s) 5 mm

Wiper cutting edge length (b) 0,8 mm

Insert Shape SN

DESCRIPTION & FEATURES

Negative square SNHQ ...-A57T • clearance angle major=0° • WAK15 • Tigertec • wiper edge length=0,8mm

Article number (J21):

SNHQ1205ZZR-A57T WAK15

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

12 mm

Inscribed circle diameter (B3):

12 mm

Insert thickness (C1):

5 mm

Corner chamfer width (D2):

0,8 mm

Wiper edge length (D6):

0,8 mm

Weight of item (D75):

0,01 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

A57T

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

5 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WAK15

Coating (H5):

TiCN+Al2O3+(TiN)

Tipped cutting edge code (H6):

Standard designation (J11):

SNHQ1205ZZR
