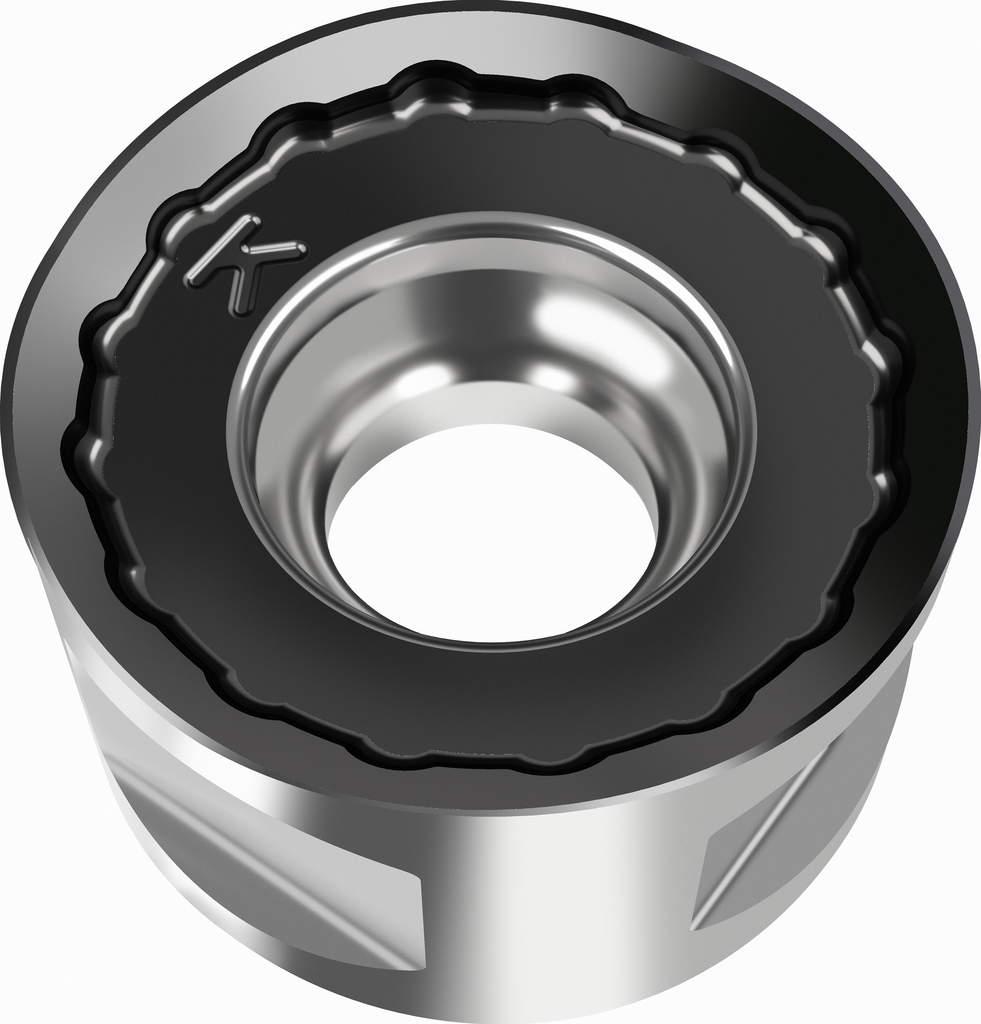

Negative round RNMX1005M0-K67 WSP45SNegative round RNMX1005M0-K67 WSP45S
Negative round RNMX1005M0-K67 WSP45S Negative round RNMX1005M0-K67 WSP45S

Negative round RNMX1005M0-K67 WSP45S

€
12.48
EX VAT
€
15.35
INC VAT
Walter
Negative round RNMX1005M0-K67 WSP45S
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES
Tool designation (Designation) RNMX1005M0-K67 WSP45S
Indexable insert tolerance class (Tolerance class) M
Number of cutting edges (Number of cutting edges) 8

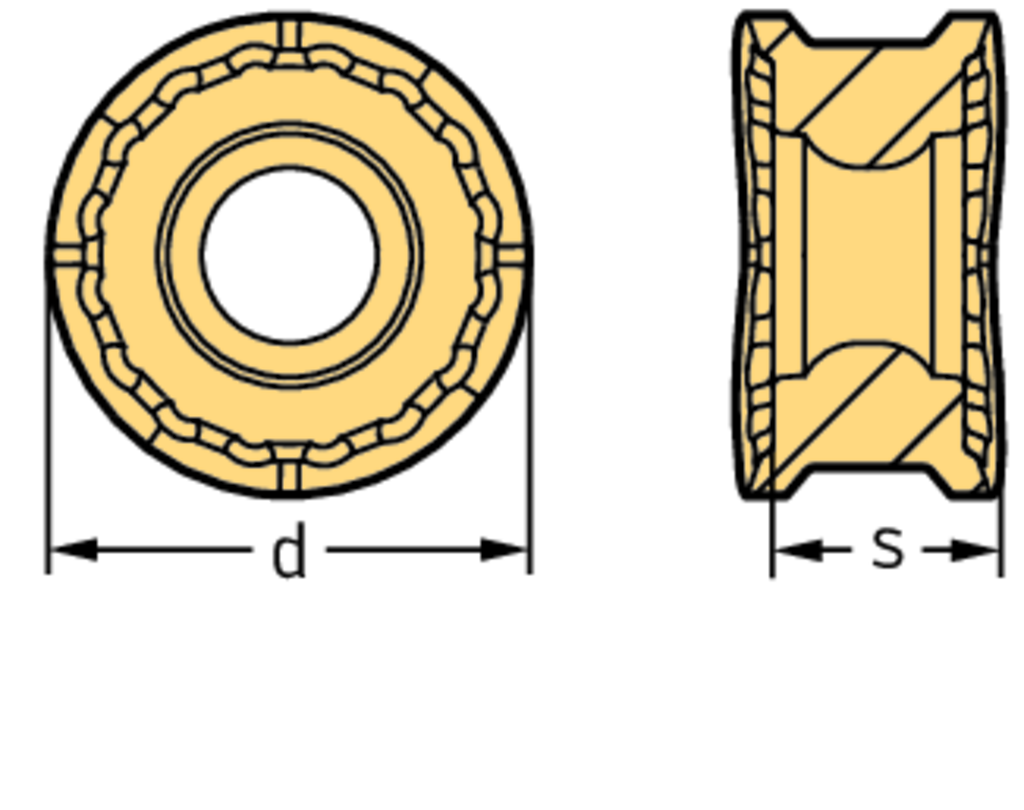

Diameter of inscribed circle (d) 10 mm
Insert thickness (s) 4,69 mm
Insert Shape RN
DESCRIPTION & FEATURES

Negative round RNMX ...-K67 • clearance angle major=0° • WSP45S • Corner radius=5mm

Article number (J21):
RNMX1005M0-K67 WSP45S
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-76
Tool style code (BLD):
10
Clearance angle major (A2):
0 °
Inscribed circle diameter (B3):
10 mm
Insert thickness (C1):
4,69 mm
Weight of item (D75):
0,004 kg
Cutting edge condition code (E41):
E
Chip breaker manufacturers designation (E9):
K67
Insert hand (F1):
N
Tolerance class insert (G1):
M
Insert thickness total (G4):
3,9 mm
Insert mounting style code (G5):
3
Fixing hole diameter (G6):
3,4 mm
Coolant supply property (H2):
0
Grade manufacturer's designation (H3):
WSP45S
Coating (H5):
TiAlN+Al2O3+(Al)
Tipped cutting edge code (H6):
S
Standard designation (J11):
RNMX1005M0
