Negative heptagonal XNHF0705ANN-D27 WKK25SNegative heptagonal XNHF0705ANN-D27 WKK25S
Negative heptagonal XNHF0705ANN-D27 WKK25S Negative heptagonal XNHF0705ANN-D27 WKK25S

Negative heptagonal XNHF0705ANN-D27 WKK25S

€
25.52
EX VAT
€
31.39
INC VAT
Walter
Negative heptagonal XNHF0705ANN-D27 WKK25S
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

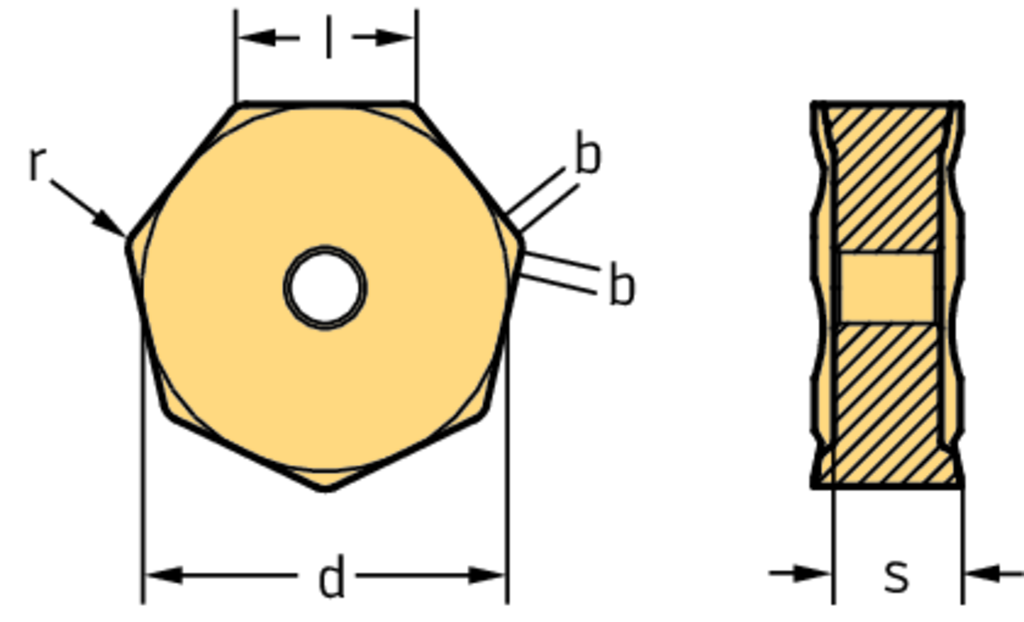

Tool designation (Designation) XNHF0705ANN-D27 WKK25S
Indexable insert tolerance class (Tolerance class) H
Number of cutting edges (Number of cutting edges) 14
Diameter of inscribed circle (d) 14,5 mm
Cutting edge length (l) 7 mm
Insert thickness (s) 5 mm
Corner radius (r) 0,8 mm
Wiper cutting edge length (b) 1,1 mm
DESCRIPTION & FEATURES

Negative heptagonal XNHF ...-D27 • clearance angle major=0° • WKK25S • Tigertec Silver • Corner radius=0,8mm • wiper edge length=1,1mm

Article number (J21):
XNHF0705ANN-D27 WKK25S
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-76
Tool style code (BLD):
11
Insert included angle (A1):
128,57 °
Clearance angle major (A2):
0 °
Cutting edge length (B1):
7 mm
Inscribed circle diameter (B3):
14,5 mm
Insert thickness (C1):
5 mm
Corner radius (D1):
0,8 mm
Wiper edge length (D6):
1,1 mm
Weight of item (D75):
0,013 kg
Cutting edge condition code (E41):
S
Cutting edge effective length (E7):
5,1 mm
Chip breaker manufacturers designation (E9):
D27
Insert hand (F1):
N
Insert index count (F2):
7
Tolerance class insert (G1):
H
Insert thickness total (G4):
4,2 mm
Insert mounting style code (G5):
2
Fixing hole diameter (G6):
2,8 mm
Coolant supply property (H2):
0
Grade manufacturer's designation (H3):
WKK25S
Coating (H5):
TiAlN+Al2O3+(Al)
Tipped cutting edge code (H6):
S
Standard designation (J11):
XNHF0705ANN
