Insert drills B3213.U3F.0111.Z01.33RInsert drills B3213.U3F.0111.Z01.33R
Insert drills B3213.U3F.0111.Z01.33R Insert drills B3213.U3F.0111.Z01.33R

Insert drills B3213.U3F.0111.Z01.33R

€
381.00
EX VAT
€
468.63
INC VAT
Walter
Insert drills B3213.U3F.0111.Z01.33R
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

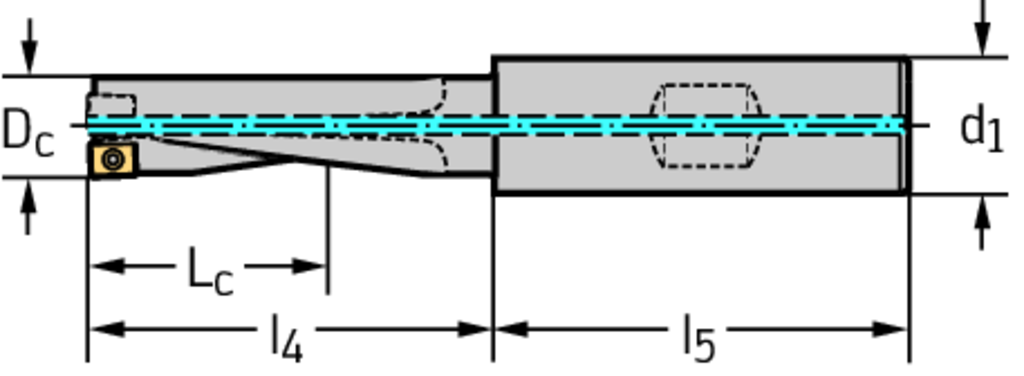

Tool designation (Designation) B3213.U3F.0111.Z01.33R
Cutting edge diameter (D c) 0,437 inch
Cutting edge length (L c) 1,311 inch
Maximum projection length (l 4) 1,768 inch
Clamping length (l 5) 1,969 inch
connection diameter (d 1) 0,75 inch
weight of item 0,14 lbs
Number of indexable inserts (No. of indexable inserts) 2
Insert Shape B3
DESCRIPTION & FEATURES
Insert drills B3213 • 3xD • Parallel shank with flat • inch • Dc=11,1mm
Article number (J21):
B3213.U3F.0111.Z01.33R
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-86
Tool style code (BLD):
1
Cutting diameter 1st step minimum (A11):
11,1 mm
Protruding length (B3):
44,907 mm
Usable length (B4):
33,3 mm
Overall length (B5):
94,132 mm
Length chip flute (B6):
45 mm
Point length (B7):
0,65 mm
Functional length (B71):
44,257 mm
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
11
Connection code unit base machine side (C14):
3
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0750
Connection diameter machine side (C3):
19,05 mm
ISO-tolerance class shank diameter (C31):
h6
Shank length (C4):
50 mm
Effective cutting edge count 1st step (D11):
1
Rotational speed maximum (D6):
21700 1/min
Weight of item (D7):
0,139 kg
Point angle 1st step (E1):
175,8 °
Cutting direction (F1):
Right
Flute helix angle (Flute_Helix):
0 °
Flute helix hand (Flute_Helix_Direction):
R
Clamping type code 1st step (G11):
S
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Data chip provision (J7):
0
