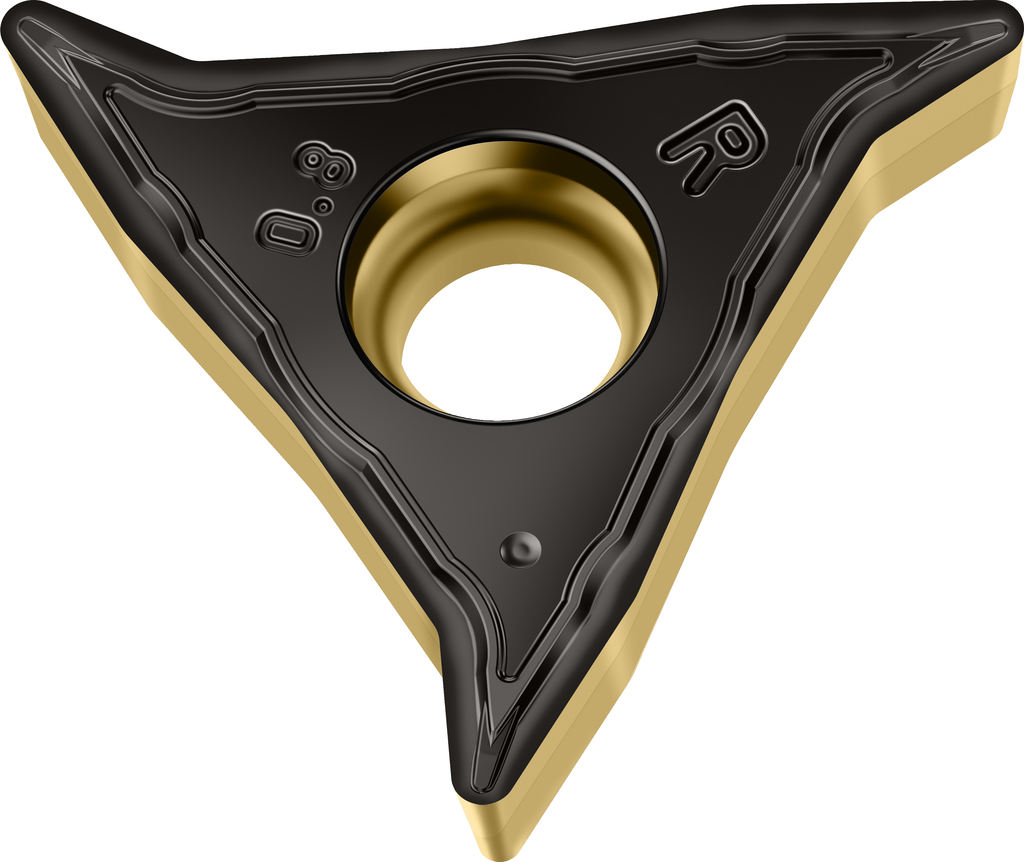

Indexable inserts copy turning system WL...-VC... WL25-VC0704R-FP4 WPP10GIndexable inserts copy turning system WL...-VC... WL25-VC0704R-FP4 WPP10G
Indexable inserts copy turning system WL...-VC... WL25-VC0704R-FP4 WPP10G Indexable inserts copy turning system WL...-VC... WL25-VC0704R-FP4 WPP10G

Indexable inserts copy turning system WL...-VC... WL25-VC0704R-FP4 WPP10G

€
13.47
EX VAT
€
16.57
INC VAT
Walter
Indexable inserts copy turning system WL...-VC... WL25-VC0704R-FP4 WPP10G
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES
Tool designation (Designation) WL25-VC0704R-FP4 WPP10G
Corner radius (r) 0,4 mm
Cutting edge length (l) 25 mm
Limited cutting edge length (l e) 6,2 mm
Limited cutting edge length (l e1) 3,9 mm
Feed per revolution (f) 0,05 - 0,2 mm
Depth of cut (a p) 0,1 - 2 mm
Insert Shape WL
DESCRIPTION & FEATURES
Indexable inserts copy turning system WL...-VC... ...-FP4 • Tigertec Gold • WPP10G • r=0,4mm
Article number (J21):
WL25-VC0704R-FP4 WPP10G
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-76
Tool style code (BLD):
0
Insert included angle (A1):
35 °
Clearance angle major (A2):
7 °
Cutting edge length (B1):
25 mm
Inscribed circle diameter (B3):
12,7 mm
Insert thickness (C1):
4,76 mm
Corner radius (D1):
0,4 mm
Weight of item (D75):
0,014 kg
Cutting edge condition code (E41):
E
Cutting edge effective length (E7):
6,2 mm
Chip breaker manufacturers designation (E9):
FP4
Insert hand (F1):
R
Insert index count (F2):
3
Tolerance class insert (G1):
M
Insert thickness total (G4):
4,76 mm
Insert mounting style code (G5):
3
Fixing hole diameter (G6):
5,5 mm
Coolant supply property (H2):
0
Grade manufacturer's designation (H3):
WPP10G
Coating (H5):
TiCN+Al2O3+(TiN)
Tipped cutting edge code (H6):
S
