Indexable insert drills D4120-04-45.00F40-P47

Indexable insert drills D4120-04-45.00F40-P47

€

648.00

EX VAT

€

797.04

INC VAT

Walter

Indexable insert drills D4120-04-45.00F40-P47

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

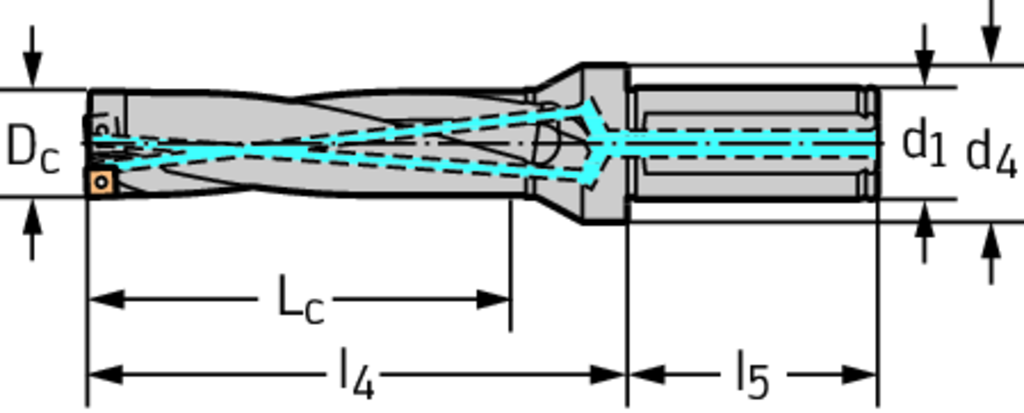

Tool designation (Designation) D4120-04-45.00F40-P47

Cutting edge diameter (D c) 45 mm

Cutting edge length (L c) 180 mm

Maximum projection length (l 4) 220 mm

Clamping length (l 5) 70 mm

Connection diameter (d 1) 40 mm

Flange diameter (d 4) 50 mm

weight of item 2,4 kg

Number of indexable inserts (No. of indexable inserts) 1

Insert Shape D4

DESCRIPTION & FEATURES

Indexable insert drills D4120 • 4xD • Parallel shank with flat • metric • Dc=45mm

Article number (J21):

D4120-04-45.00F40-P47

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-86

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

45 mm

Protruding length (B3):

220 mm

Usable length (B4):

180 mm

Overall length (B5):

290 mm

Length chip flute (B6):

209 mm

Point length (B7):

0,537 mm

Functional length (B71):

219,463 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

40 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

70 mm

Effective cutting edge count 1st step (D11):

Rotational speed maximum (D6):

3100 1/min

Weight of item (D7):

2,4 kg

Point angle 1st step (E1):

176 °

Cutting direction (F1):

Right

Flute helix angle (Flute_Helix):

18 °

Flute helix hand (Flute_Helix_Direction):

Clamping type code 1st step (G11):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Master insert identification, inside cutting edge, 1st step (J42):

P4841C-7R-A57

Master insert identification, outside cutting edge, 1st step (J52):

P4840P-7R-A57

Data chip provision (J7):
