HSS-E machine taps 22410-UNC1

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

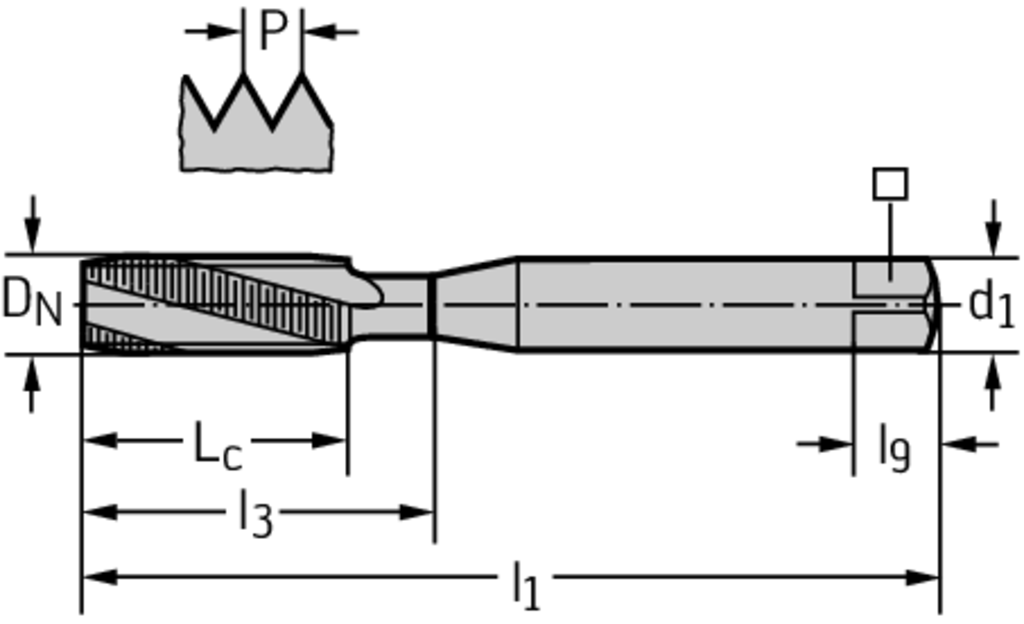

Tool designation (Designation) 22410-UNC1

Thread size (D N -P) UNC #1-64

Thread size (D N) UNC #1-64

Functional length (l 1) 45 mm

Cutting edge length (L c) 4 mm

Useable length (l 3) 9 mm

Connection diameter (d 1) 2,8 mm

clamping width (⃞) 2,1 mm

Driving square length (l 9) 5 mm

Number of grooves (N) 3

Insert Shape

DESCRIPTION & FEATURES

HSS-E machine taps • Paradur N • ≤1,5xD • UNC/2B • DIN 2184-1 • right hand flute 15° • Suitable for blind hole • UNC #1-64 • P=64

Article number (J21):

22410-UNC1

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

UNC

Thread diameter nominal inch (A22):

0,073 inch

Thread diameter size (A23):

Thread designation outside (A25):

UNC #1-64

Threads per inch (A4):

Thread tolerance class (A5):

Gate diameter (A6):

1,44 mm

Neck diameter (A9):

1,34 mm

Thread cutting part length (B1):

4 mm

Usable length (B2):

9 mm

Overall length (B3):

45,73 mm

Tap chamfer length (B4):

0,99 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0028

Connection diameter machine side (C3):

2,8 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

21 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

15 °

Weight of item (D7):

0,004 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

DIN 2184-1

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:

UNC
