Exchangeable-tip drills D4140-10-20.00F20-E

Exchangeable-tip drills D4140-10-20.00F20-E

€

632.00

EX VAT

€

777.36

INC VAT

Walter

Exchangeable-tip drills D4140-10-20.00F20-E

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

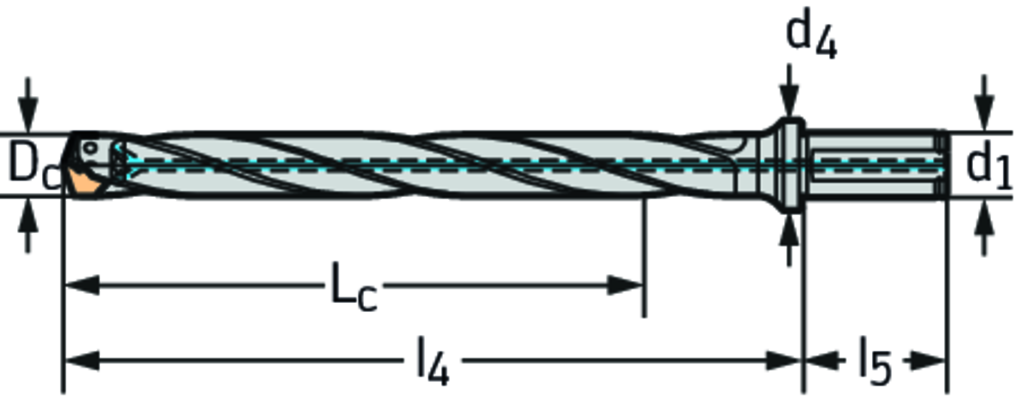

PRODUCT ATTRIBUTES

Tool designation (Designation) D4140-10-20.00F20-E

Cutting edge diameter (D c) 20 mm

Cutting edge length (L c) 200 mm

Maximum projection length (l 4) 240 mm

Shank length (l 5) 50 mm

connection diameter (d 1) 20 mm

Flange diameter (d 4) 25 mm

weight of item 0,48 kg

Number of indexable inserts (No. of indexable inserts) 1

Seat size 20

Insert Shape D4

DESCRIPTION & FEATURES

Exchangeable-tip drills D4140 • Cylindrical shank with flat • metric • 10xD • point angle 140° • Z=2 • Dc=20mm

Article number (J21):

D4140-10-20.00F20-E

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-86

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

20 mm

Cutting diameter 1st step maximum (A12):

20,99 mm

Protruding length (B3):

240 mm

Usable length (B4):

200 mm

Overall length (B5):

290 mm

Length chip flute (B6):

220 mm

Point length (B7):

3,64 mm

Functional length (B71):

236,36 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0200

Connection diameter machine side (C3):

20 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

50 mm

Effective cutting edge count 1st step (D11):

Rotational speed maximum (D6):

3180 1/min

Weight of item (D7):

0,476 kg

Point angle 1st step (E1):

140 °

Cutting direction (F1):

Right

Flute helix angle (Flute_Helix):

20 °

Flute helix hand (Flute_Helix_Direction):

Clamping type code 1st step (G11):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
