Exchangeable-tip drills D4140 D4140.03-14.00A15-B

Exchangeable-tip drills D4140 D4140.03-14.00A15-B

€

277.00

EX VAT

€

340.71

INC VAT

Walter

Exchangeable-tip drills D4140 D4140.03-14.00A15-B

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

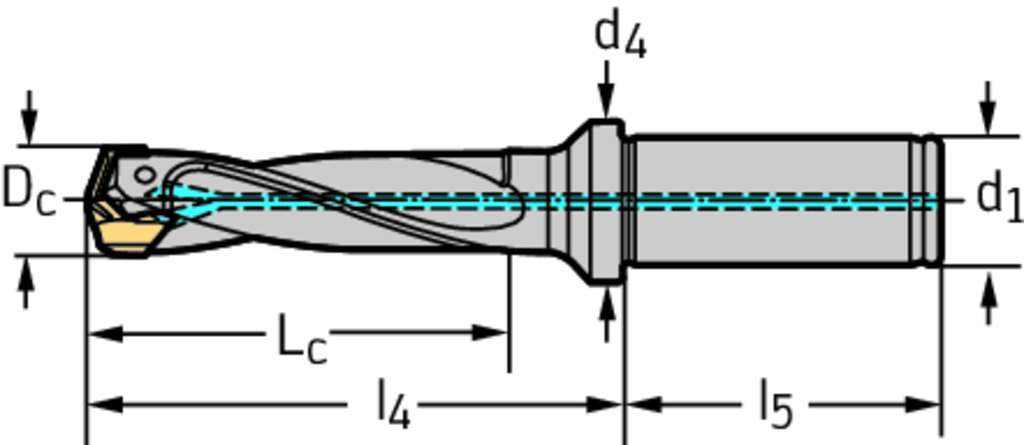

Tool designation (Designation) D4140.03-14.00A15-B

Cutting edge diameter (D c) 0,551 inch

Cutting edge length (L c) 1,772 inch

Maximum projection length (l 4) 2,992 inch

Shank length (l 5) 1,89 inch

connection diameter (d 1) 0,625 inch

Flange diameter (d 4) 0,787 inch

weight of item 0,16 lbs

Number of indexable inserts (No. of indexable inserts) 1

DESCRIPTION & FEATURES

Exchangeable-tip drills D4140 • Cylindrical shank with collar • inch • 3xD • point angle 140° • Z=2 • Dc=14mm

Article number (J21):

D4140.03-14.00A15-B

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-86

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

14 mm

Cutting diameter 1st step maximum (A12):

14,99 mm

Protruding length (B3):

76 mm

Usable length (B4):

45 mm

Overall length (B5):

124 mm

Length chip flute (B6):

56 mm

Point length (B7):

2,548 mm

Functional length (B71):

73,45 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0625

Connection diameter machine side (C3):

15,875 mm

Shank length (C4):

48 mm

Effective cutting edge count 1st step (D11):

Rotational speed maximum (D6):

18180 1/min

Weight of item (D7):

0,16 kg

Point angle 1st step (E1):

140 °

Cutting direction (F1):

Right

Flute helix angle (Flute_Helix):

20 °

Flute helix hand (Flute_Helix_Direction):

Clamping type code 1st step (G11):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
