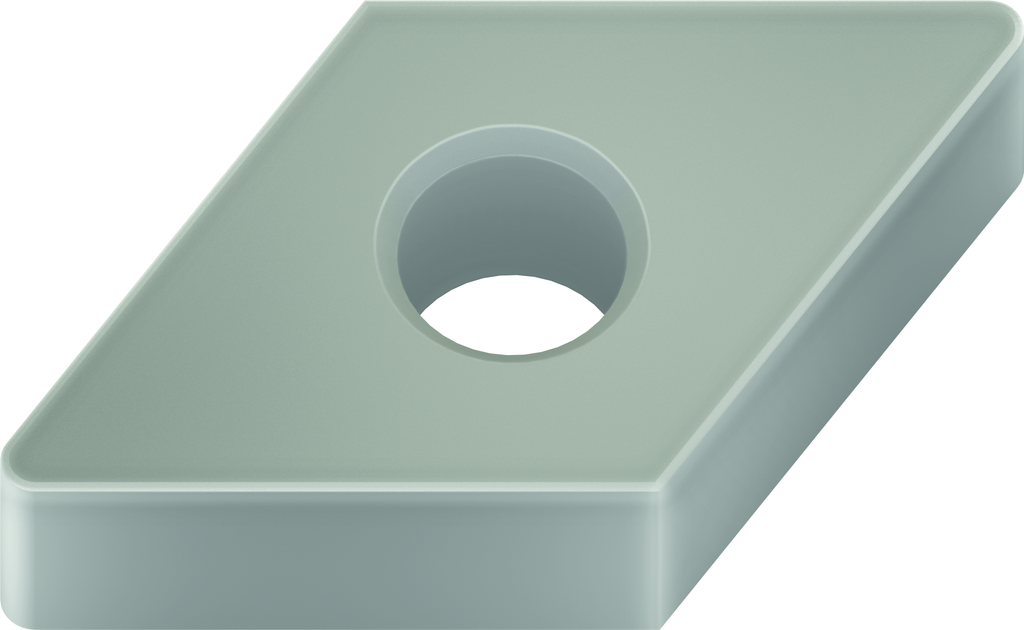

Ceramic – Negative rhombic 55° DNGA150612T02020 WCK10

Ceramic – Negative rhombic 55° DNGA150612T02020 WCK10

€

27.80

EX VAT

€

34.19

INC VAT

Walter

Ceramic – Negative rhombic 55° DNGA150612T02020 WCK10

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

Tool designation (Designation) DNGA150612T02020 WCK10

Corner radius (r) 1,2 mm

Feed per revolution (f) 0,1 - 0,6 mm

Depth of cut (a p) 0,1 - 5 mm

Insert Shape DN

DESCRIPTION & FEATURES

Ceramic – Negative rhombic 55° DNGA ...-T02020 • WCK10 • r=1,2mm

Article number (J21):

DNGA150612T02020 WCK10

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

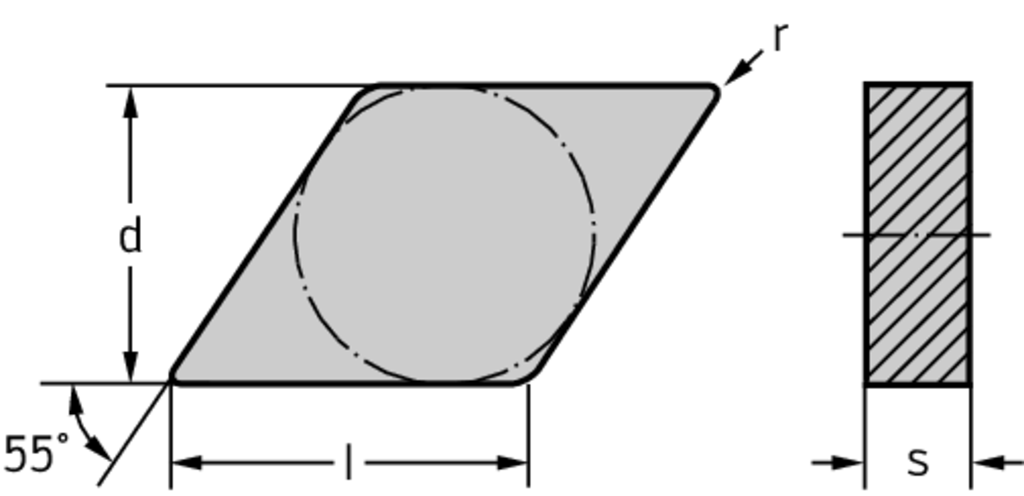

Insert included angle (A1):

55 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

15,504 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

6,35 mm

Corner radius (D1):

1,2 mm

Weight of item (D75):

0,006 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Chip breaker manufacturers designation (E9):

T0202

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

6,35 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

5,16 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WCK10

Coating (H5):

Siliziumnitrid Si3N4

Tipped cutting edge code (H6):

Standard designation (J11):

DNGA150612
