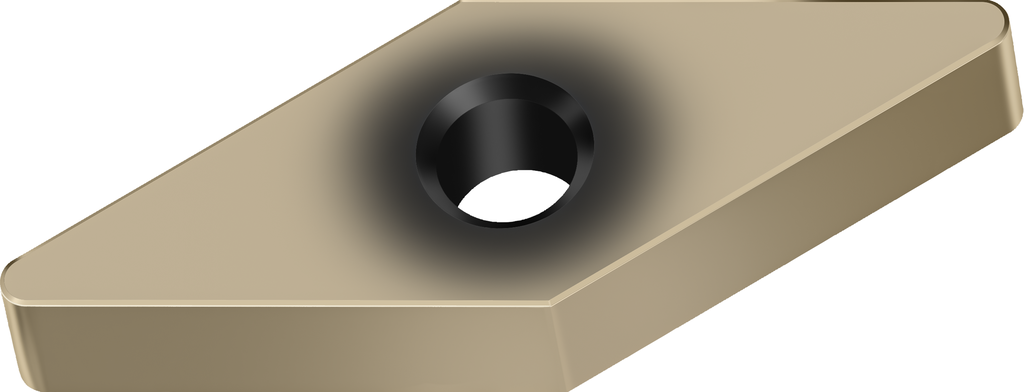

Ceramic – Negative rhombic 35° VNGA160412SM-S WCH10C

Ceramic – Negative rhombic 35° VNGA160412SM-S WCH10C

€

19.43

EX VAT

€

23.90

INC VAT

Walter

Ceramic – Negative rhombic 35° VNGA160412SM-S WCH10C

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

Tool designation (Designation) VNGA160412SM-S WCH10C

Corner radius (r) 1,2 mm

Feed per revolution (f) 0,05 - 0,25 mm

Depth of cut (a p) 0,1 - 0,7 mm

Insert Shape VN

DESCRIPTION & FEATURES

Ceramic – Negative rhombic 35° VNGA ...-SM-S • WCH10C • r=1,2mm

Article number (J21):

VNGA160412SM-S WCH10C

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

35 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

16,606 mm

Inscribed circle diameter (B3):

9,525 mm

Insert thickness (C1):

4,762 mm

Corner radius (D1):

1,2 mm

Weight of item (D75):

0,003 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Chip breaker manufacturers designation (E9):

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,762 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

3,81 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WCH10C

Coating (H5):

TIN

Tipped cutting edge code (H6):
