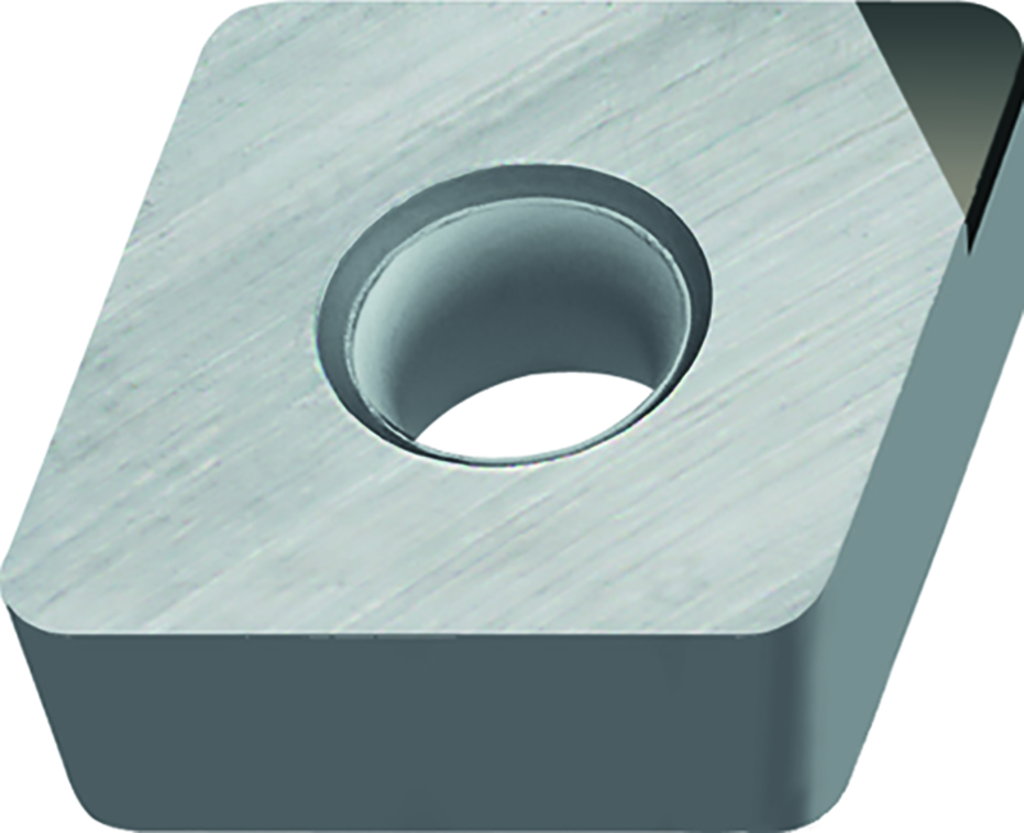

CBN – Positive rhombic 80° CPGW050202 WCB50

CBN – Positive rhombic 80° CPGW050202 WCB50

€

55.50

EX VAT

€

68.27

INC VAT

Walter

CBN – Positive rhombic 80° CPGW050202 WCB50

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

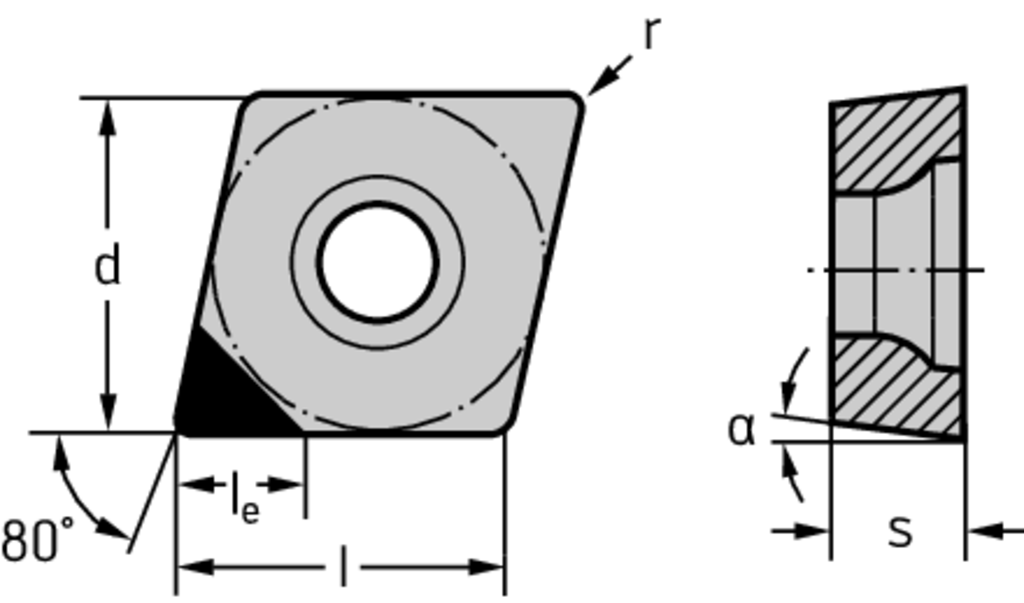

Tool designation (Designation) CPGW050202 WCB50

Number of cutting edges (Number of cutting edges) 1

Limited cutting edge length (l e) 2,4 mm

Corner radius (r) 0,2 mm

Clearance angle major (α) 11 Deg

Functional width (f) 0,05 - 0,15 mm

Depth of cut (a p) 0,1 - 0,3 mm

Insert Shape CP

DESCRIPTION & FEATURES

CBN – Positive rhombic 80° CPGW ...-A27 • clearance angle major=11° • WCB50

Article number (J21):

CPGW050202 WCB50

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

80 °

Clearance angle major (A2):

11 °

Cutting edge length (B1):

5,65 mm

Inscribed circle diameter (B3):

5,56 mm

Insert thickness (C1):

2,38 mm

Corner radius (D1):

0,2 mm

Weight of item (D75):

0,006 kg

Cutting edge effective length (E7):

2,4 mm

Chip breaker manufacturers designation (E9):

A27

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

2,38 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

2,5 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WCB50

Coating (H5):

CBN

Tipped cutting edge code (H6):

Standard designation (J11):

CPGW050202
